Skeleton Trailer
The Skeleton Trailer is the backbone of global container logistics, engineered for the high-speed transport of 20ft, 40ft, and 45ft containers. As a premier wholesale semi trailer specialist, Roadking Vehicle designs these chassis with a focus on structural minimalism and maximum strength, ensuring a lightweight profile that significantly reduces fuel consumption. Streamline your port operations today. Contact Us for wholesale quotes and custom specifications!
-

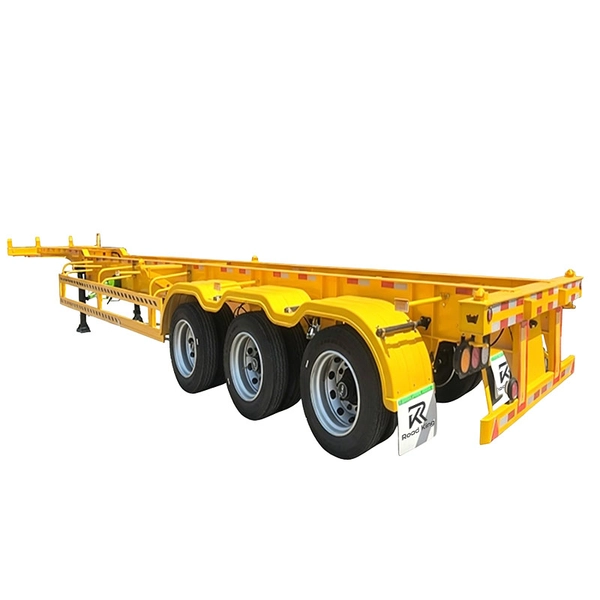

40FT Skeletal Trailer for Flexible Container Transport
-

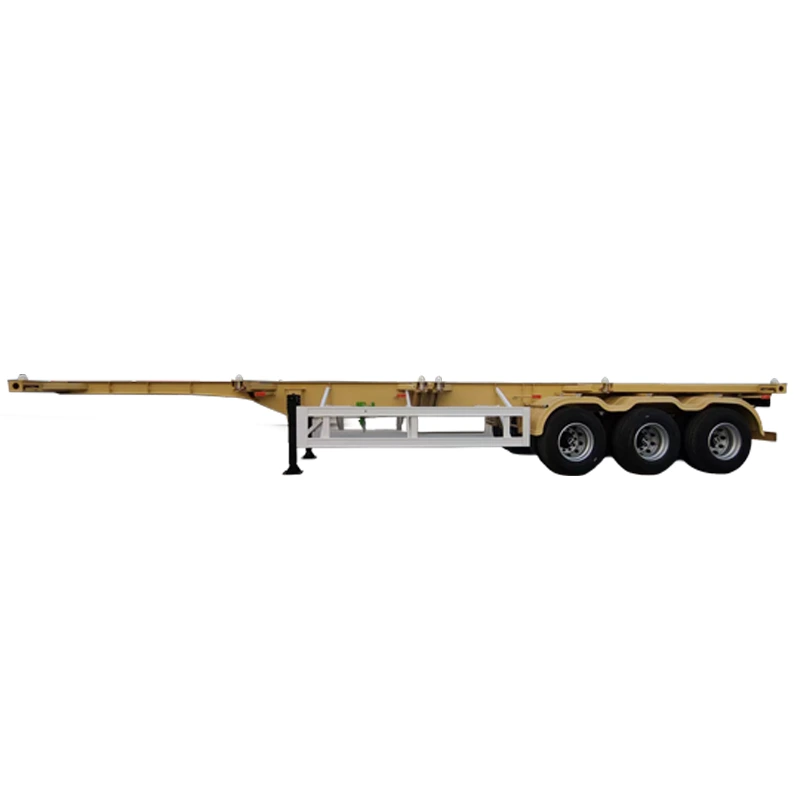

Heavy Duty Skeletal Trailer for Overweight Container Transport
-

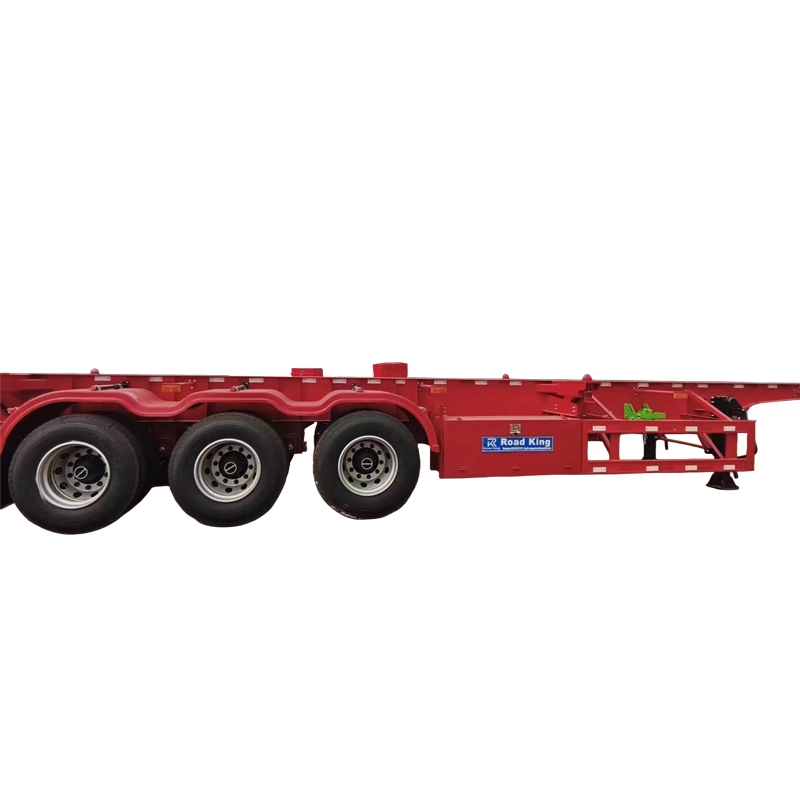

20FT Container Skeletal Trailer for Port and Short Distance Transport
Maximizing Fleet Efficiency Across Diverse Container Interchanges
Adapting to varied shipping container dimensions allows global logistics companies to reduce total turnaround times. Our specialized Skeleton Semi Trailer configurations are optimized to achieve stable weight distribution across diverse regional highway axle limits:
-
Multi-Configuration Loading: Fleet operators can choose configurations with 12 positioning twist locks to effortlessly switch between carrying one standard 40ft container, two 20ft containers, or a single 20ft container positioned centrally.
-
Low Profile Engineering: Utilizing specialized drop-frame or gooseneck designs lowers the overall cargo height, ensuring heavy high-cube containers clear strict legal vertical clearances along urban shipping corridors.
-
Intensive Terminal Shuttles: For targeted port environments, our heavy-duty Port Container Chassis series features reinforced bumper structures and guide blocks to facilitate rapid, repetitive terminal terminal tractor hookups.
Structural Durability and Torsional Resistance for High-Frequency Transit
Continuous operation in busy maritime terminals demands a trailer frame that resists structural fatigue. Roadking semi truck trailer for sale designs each Shipping Container Trailer with premium high-tensile steel main beams and automated submerged arc welding technology. This engineering approach provides maximum torsional resistance against the severe dynamic impacts encountered during overhead crane loading, while the standard Sa 2.5 shot-blasting surface treatment protects the chassis from maritime salt-spray corrosion.
Technical Configurations of the Intermodal Skeleton Fleet
| Engineering Feature | Standard 40ft Skeleton | Heavy-Duty Gooseneck Chassis |
| Main Beam Material | High-Tensile Q345B Steel | Ultra-High Strength Q460 Steel |
| Twist Lock System | 4 / 8 / 12 Units ISO Standards | Retractable Twist Lock Assemblies |
| Axle Configuration | 2 / 3 Axles FUWA or BPW | 3 Axles Heavy-Duty Air Suspension |
| Landing Gear Capacity | 28 Tons Two-Speed Manual | 28 Tons Heavy-Duty Linkage Gear |
Technical Procurement Insights and Operational FAQ
Q:What types of containers can be transported on a standard skeleton chassis?
A:Our standard production designs are fitted with adaptable twist lock layouts that can secure a single 40ft container, two 20ft containers, or a single 20ft Skeleton Trailer loaded in the middle. Specialized chassis can also be configured for 45ft international shipping units.
Q:Why is a gooseneck configuration preferred for high-cube container transit?
A:The integrated Gooseneck Skeleton Trailer structure steps down the front section of the frame, allowing the container to sit lower to the ground. This drop in cargo height effectively lowers the vehicle center of gravity and helps transport fleets comply with strict overhead clearance regulations.
Q:What braking systems are installed to ensure safety during intensive port operations?
A:We install certified dual-line pneumatic braking systems paired with high-performance ABS valves. This combination ensures rapid response times and prevents wheel lockup during emergency stops, even when hauling maximum payload capacities under wet terminal conditions.
