20FT Container Skeletal Trailer for Port and Short Distance Transport
20FT Container Skeletal Trailer for Port and Short Distance Transport

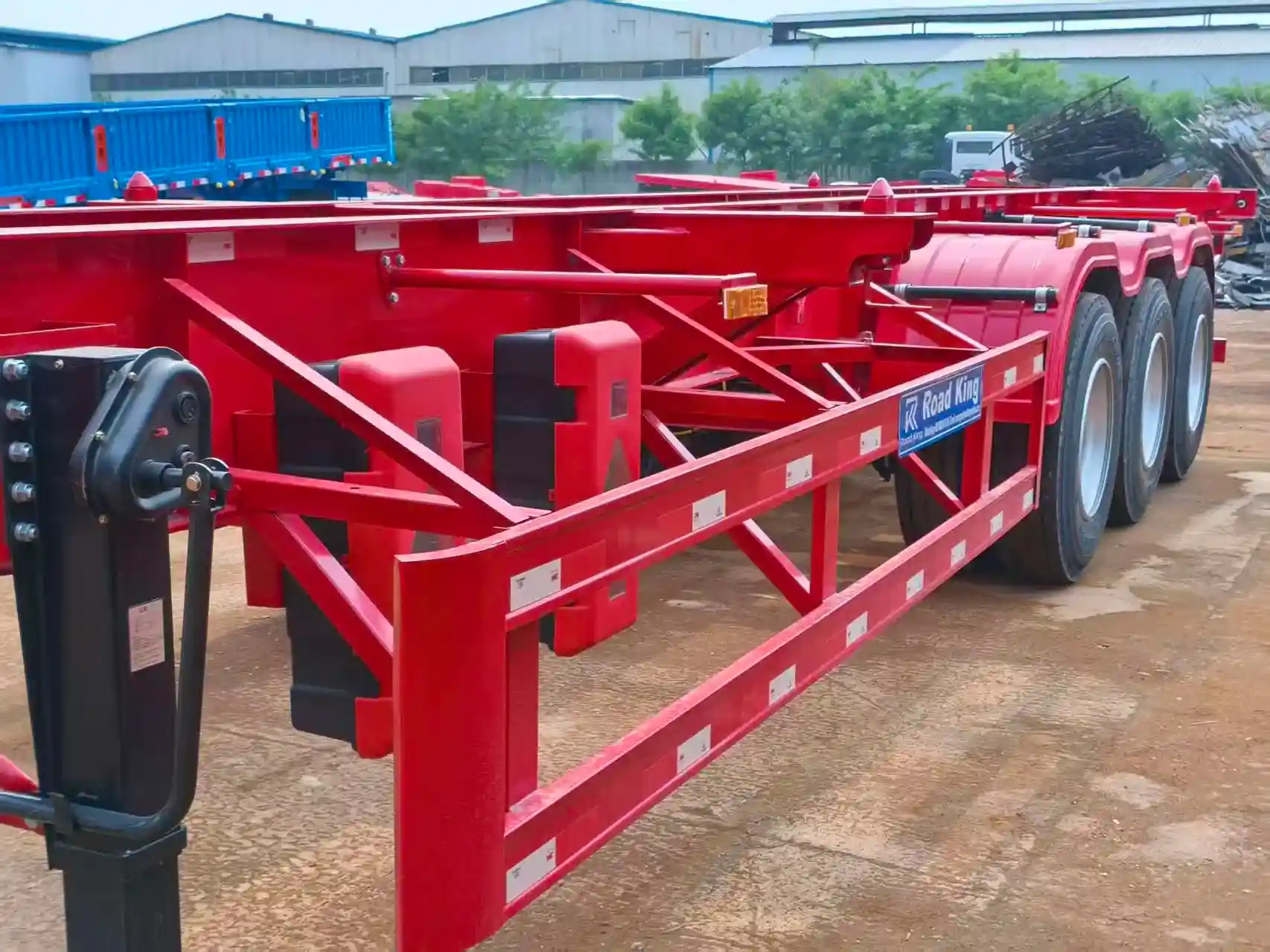

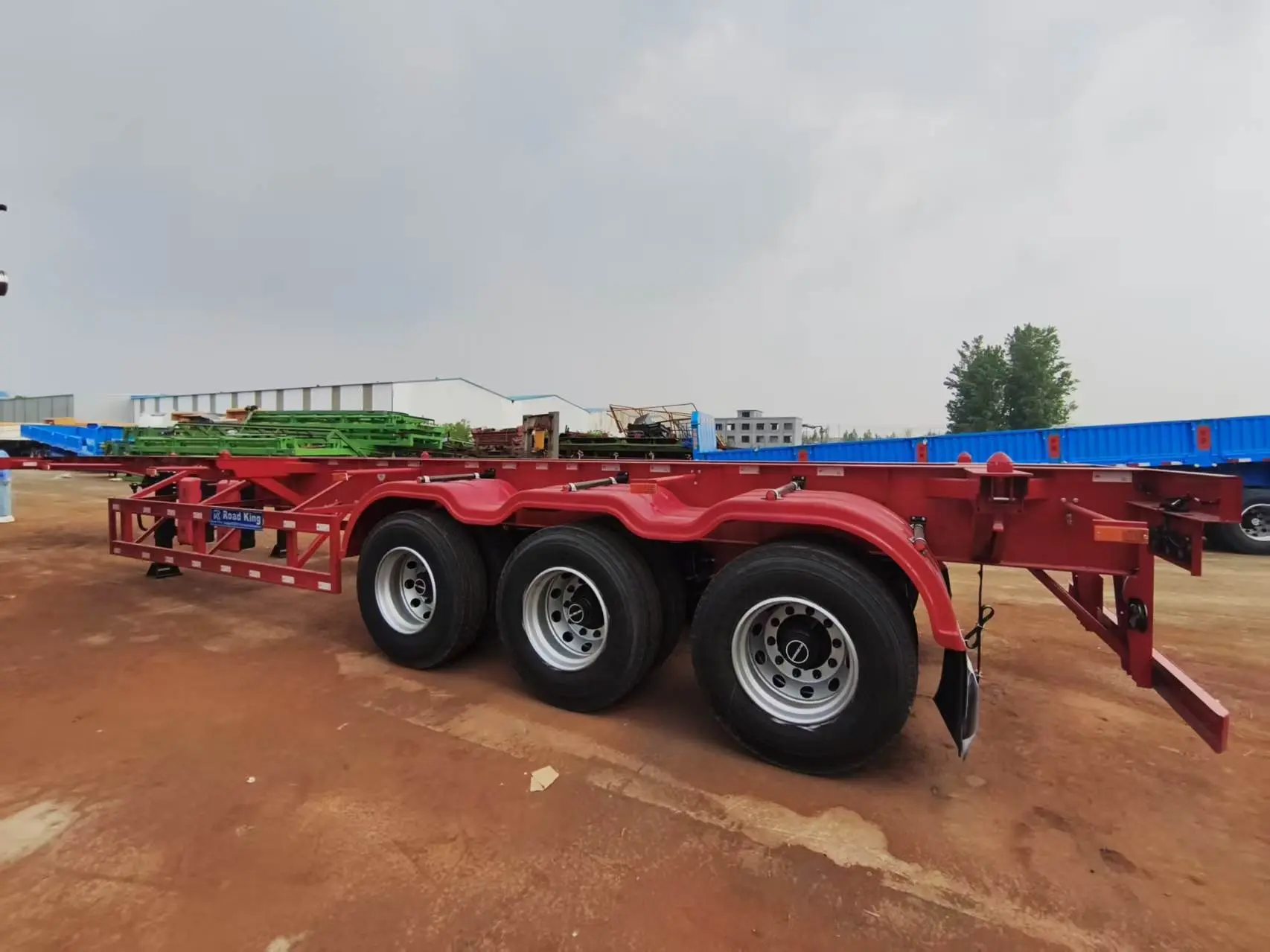

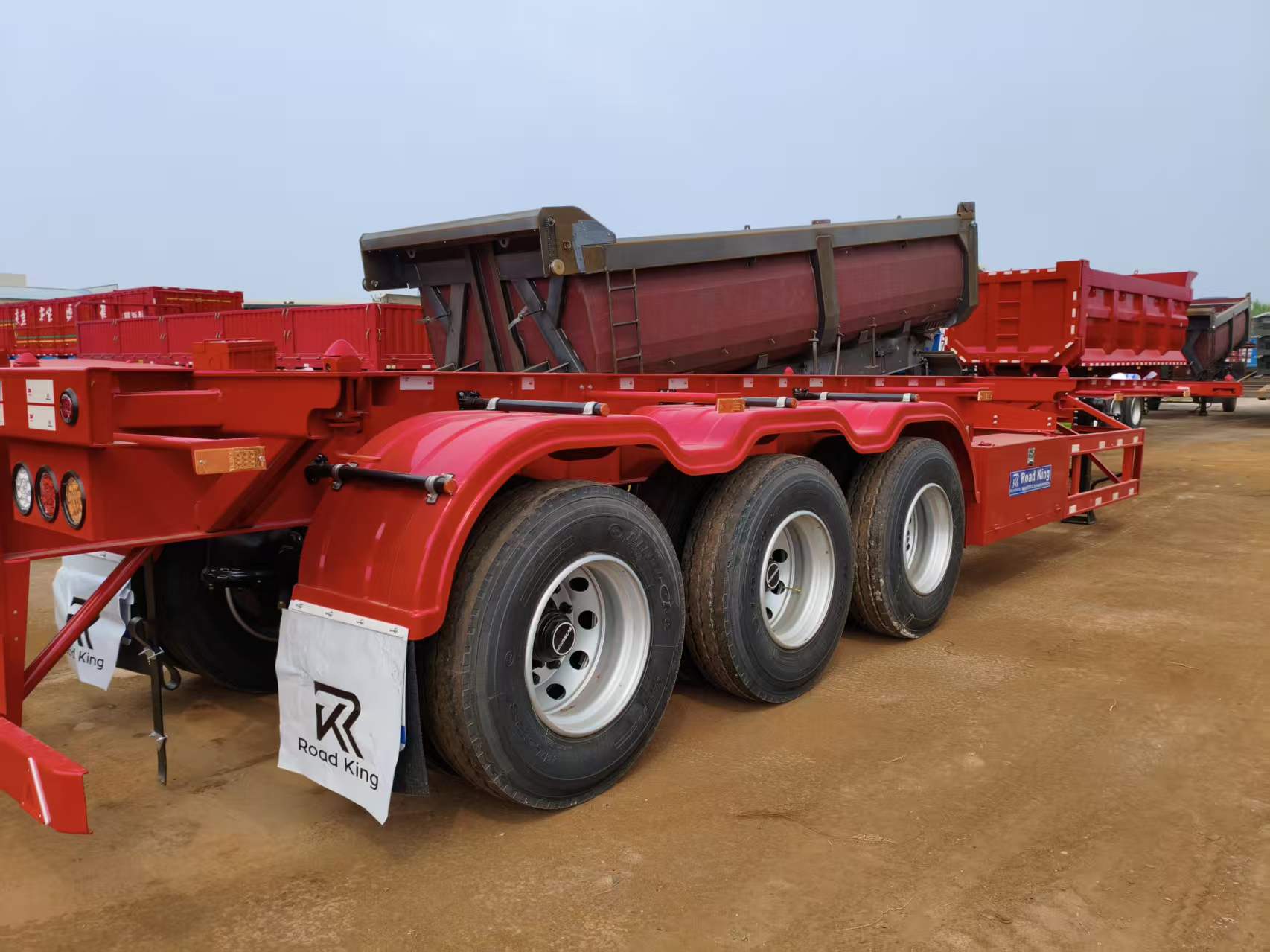

The 20FT Skeleton Trailer is designed specifically for transporting single 20ft ISO containers, making it an efficient solution for port logistics, yard operations, and short-distance container movement. Its compact structure and lightweight design allow for better maneuverability, especially in confined areas such as terminals and urban logistics routes.
While we offer the step deck flatbed trailer for sale for specialized machinery, this dedicated container chassis focuses on maximizing transport efficiency while minimizing unnecessary weight. The open-frame structure reduces tare weight, enabling higher payload capacity and improved fuel economy for frequent operations.
Structural & Design Highlights
-
Advanced Engineering: Much like our 3 axle flatbed trailer with through-beam structure, this skeletal model adopts a reinforced steel frame optimized for rigorous transport.
-
Heavy-Duty Integrity: By utilizing a Flatbed With Through-Beam Structure philosophy, the main beams are designed to penetrate the cross-members, ensuring reliable load-bearing performance and superior resistance to twisting during frequent loading cycles.
-
Maneuverability vs. Power: While a Flatbed For Heavy Equipment is built for massive static loads, this wholesale semi trailer offers the flexibility needed for high-turnover container logistics and navigating tight working environments.
20FT Container Skeletal Trailer Parameter
| Brand | ROADKING |
| Item | 20FT Skeleton Semi Trailer |
| Axles | 2 Axles / 3 Axles |
| Container Loading | 20ft Container |
| Loading Capacity | 20–50 Tons |
| Type | Gooseneck or Tandem |
| Main Beam Material | Q345 / T700 |
| Upper Plate Thickness | 12mm |
| Middle Plate Thickness | 6mm |
| Lower Plate Thickness | 12mm |
| Height | 500mm |
| Dimensions (L×W×H) | 7000×2480×1560mm |
| Axle Brand | VEHICLE MASTER / FUWA / BPW (13 Ton) |
| Tire | 12R22.5 (8/12 pcs) Linglong / Triangle / Double Coin / Bridgestone |
| Rim | 9.00×22.5 (8/12 pcs) Steel / Aluminum |
| Leaf Spring | 90×13mm×10 pcs / 90×16mm×10 pcs |
| King Pin | #50 (2") / #90 (3.5"), JOST / Other |
| Landing Gear | 28 Tons Two Speed, JOST / Other |
| Twist Lock | 4 Sets |
| Painting | Electrophoresis Painting |
Key Advantages of 20FT Skeleton Trailer
-
Designed for 20FT Containers: Fully compatible with standard 20ft ISO containers, ensuring precise fit and safe transport.
-
Through-Beam Durability: Engineered with a Flatbed With Through-Beam Structure to evenly distribute weight, enhancing stability and extending the chassis life.
-
Lightweight Efficiency: Reduced self-weight increases payload efficiency and lowers operational costs compared to a full-deck 3 axle flatbed trailer.
-
Secure Locking System: Equipped with durable twist locks to ensure stable container positioning during transit.
Typical Applications
-
Port and terminal container transport.
-
Container yard operations and intermodal transfer.
-
Short-distance logistics where a Flatbed For Heavy Equipment is not required.
-
Urban delivery routes requiring high maneuverability.
Quality Control & Manufacturing
To withstand demanding environments, especially in coastal and port areas, every trailer—from our step deck flatbed trailer for sale to our 20ft skeletal units—is treated with industrial-grade anti-corrosion coatings. As a leading China skeletal semi trailer manufacturer, we ensure that our 3 axle flatbed trailer with through-beam structure technology is applied across our entire fleet to provide maximum durability for our global clients.
