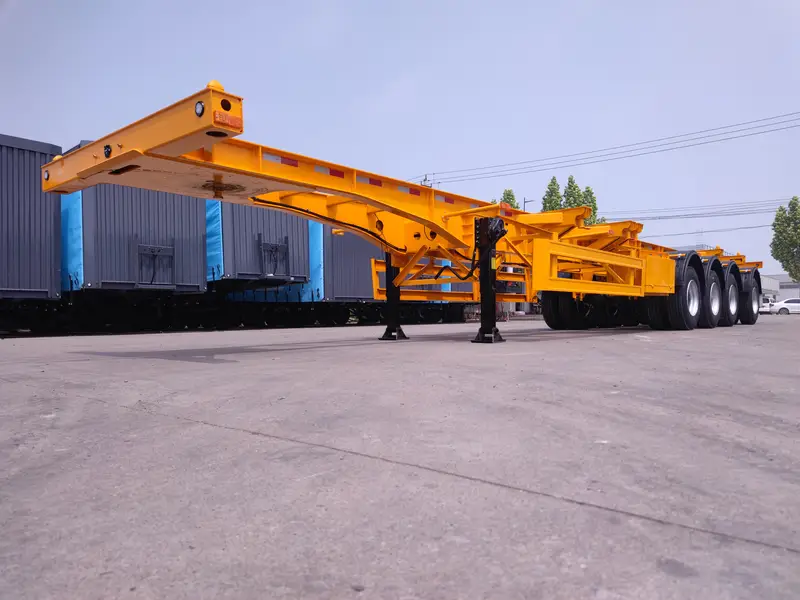

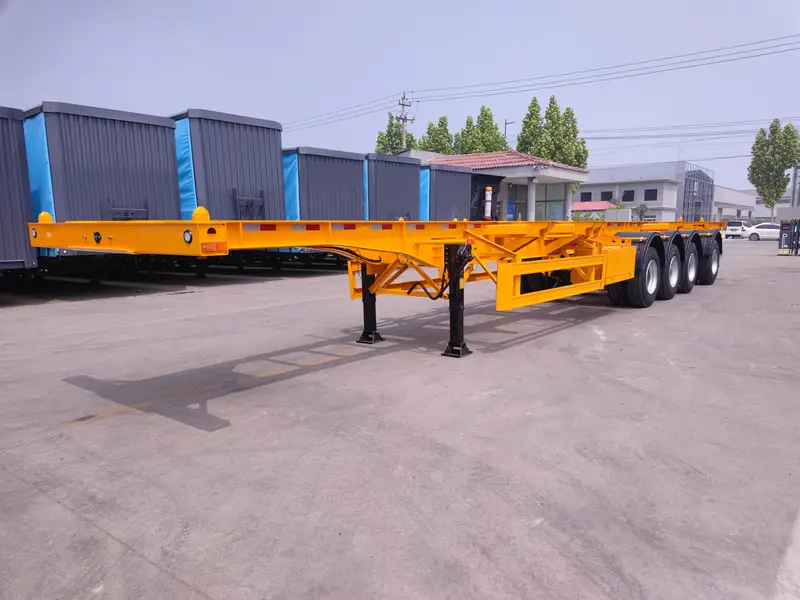

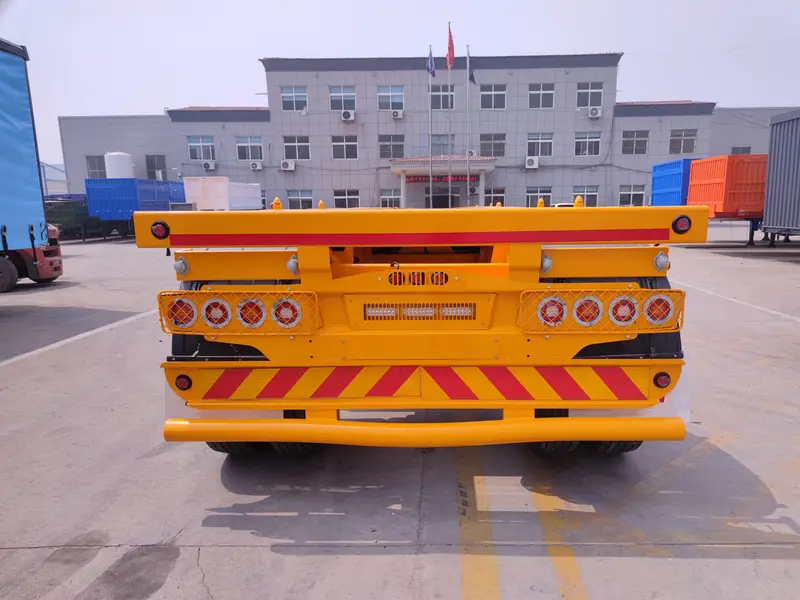

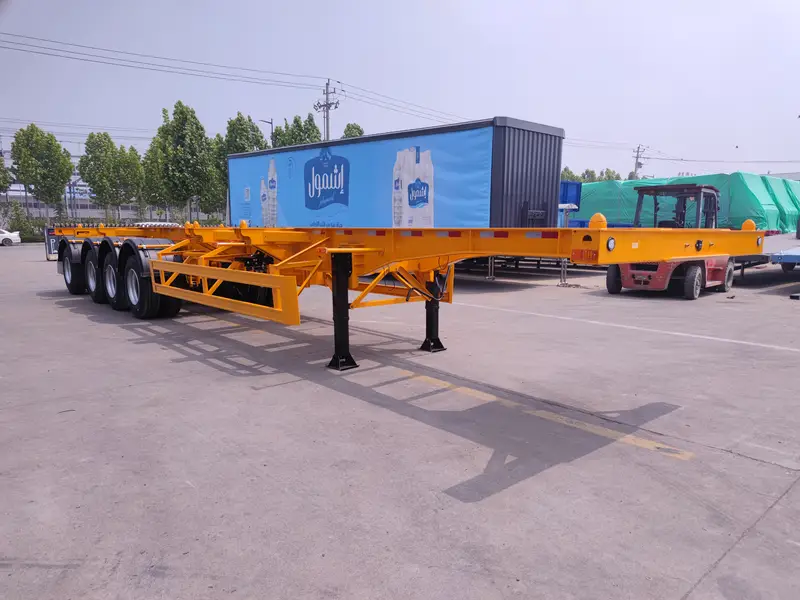

4 Axle 40FT Container Chassis Trailer
The 4 Axle 40FT Container Chassis Trailer from RoadKing Vehicle is a heavy-duty skeletal semi-trailer purpose-built for high-frequency intermodal container haulage, port logistics, and long-distance freight distribution. Designed to support ISO standard 40FT containers, this skeletal chassis maximizes structural strength while minimizing unladen curb weight.
Featuring an upgraded 4-axle configuration, high-tensile Q345/T700 steel frame, and 12 heavy-duty twist locks, it delivers superior axle weight distribution and anti-torsion stability across rough road conditions. Explore our full range of container chassis trailers for factory-direct quotes and custom CAD designs.
Skeleton Trailer Configuration list
| ITEM | SPECIFICATION |
| Axle | 4 Axles |
| Axle Brand | FUWA / BPW / Other Brand Optional |
| Dimension(mm) | 12400 × 2480 × 1580mm |
| Loading Capacity | 30–80 Tons |
| Type | Gooseneck / Tandem Type |
| Material | Q345 / T700 High Strength Steel |
| Main Beam Height | 500mm |
| Upper Plate Thickness | 14mm |
| Middle Plate Thickness | 6mm |
| Lower Plate Thickness | 16mm |
| Twist Lock | 12 Sets |
| Suspension System | Mechanical Suspension / Air Suspension Optional |
| Tire | 12R22.5 (16 Pieces) Linglong / Triangle / Double Coin / Other Brand |
| Rim | 9.0 × 22.5 (16 Pieces) Steel / Aluminum |
| Leaf Spring | 90mm × 13mm × 10 Pieces / 90mm × 16mm × 10 Pieces |
| King Pin | #50 (2") / #90 (3.5") JOST / Other Brand |
| Landing Gear | 28 Tons Two Speed JOST / Other Brand |
| Electrical System | 24V LED Lighting System |
| Surface Treatment | Powder Coating |
| Optional | SKD/CKD Cooperation, Customized Configuration |
| Brake System | WABCO Optional |
Engineered for High-Efficiency 40FT Container Transport
Specifically designed to meet demanding intermodal container shipping needs, this skeletal chassis is outfitted with 12 heavy-duty twist locks. This versatile locking system allows transport operators to effortlessly carry:
- 1 x 40FT Standard Dry Cargo or High-Cube Container
- 2 x 20FT ISO Standard Containers
- 1 x 20FT Heavy Container in the Center Position
Looking for specialized container handling solutions for port terminals? Check out our skeleton trailer for self-loading operations.

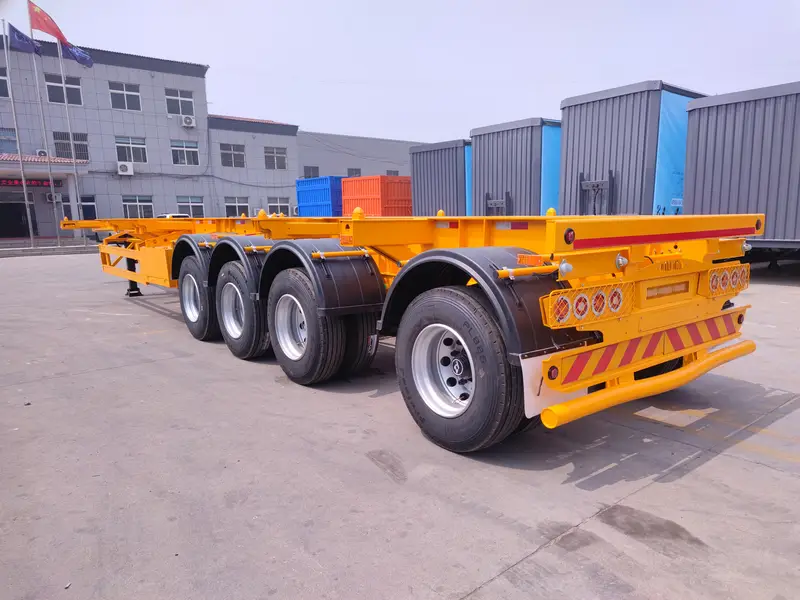

Heavy-Duty 4-Axle Chassis for Optimal Weight Distribution
Compared to standard 2-axle or 3-axle skeletal chassis, the 4-axle setup provides a significantly larger payload margin while complying with strict highway axle-load regulations.
Advantages of the 4-Axle Setup:
- Even Load Distribution: Spreads heavy container weight across 4 axles to prevent frame stress and excessive road impact.
- Enhanced Driving Stability: Minimizes sway and bounce during high-speed highway transport and long-distance hauling.
- Extended Component Life: Reduces wear on individual tires, brake drums, and suspension leaf springs.

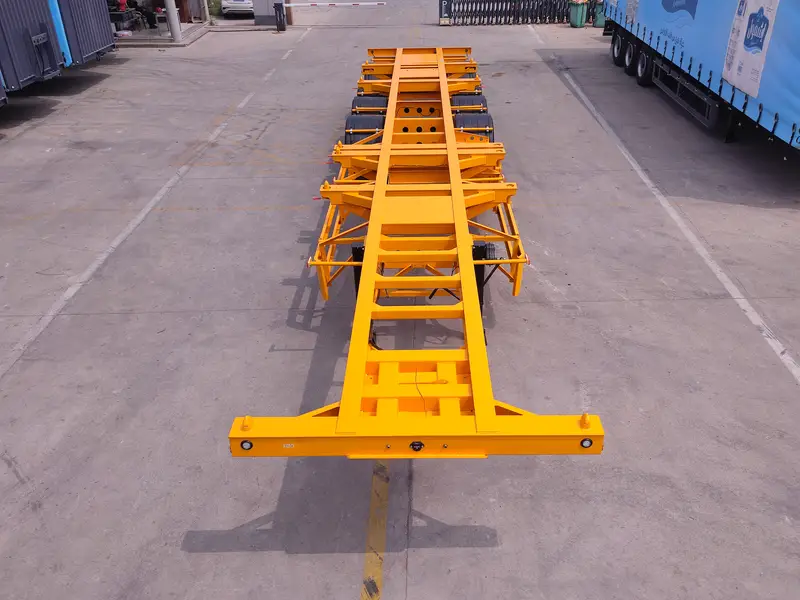

Reinforced Q345 / T700 Steel Skeletal Frame
The main beam is submerged-arc welded using premium high-strength carbon steel. The open skeletal design drastically reduces tare weight without sacrificing load-bearing stiffness:
- High Anti-Torsion Strength: Resists frame twisting caused by uneven container loads or unpaved port logistics roads.
- Convenient Inspection: Open chassis structure allows quick access for daily maintenance of air tanks, brake lines, and electrical wiring.
- Durable Surface Protection: Shot-blasted steel frame finished with anti-corrosion primer and a protective polyurethane topcoat.
If your logistics operations require a fully decked platform for both containers and general cargo, explore our heavy-duty flatbed semi trailers.
Flexible Suspension & Premium Component Options
RoadKing offers customizable running gear to match regional road conditions and fleet preferences:
- Mechanical Suspension: Built with multi-leaf spring stacks for rugged road conditions, heavy loads, and easy maintenance across emerging logistics markets.
- Air Suspension (Optional): Select our air suspension system for superior vibration damping, protecting sensitive cargo and improving fuel efficiency during unladen returns.
- Axles & Brakes: Choose trusted international brands such as FUWA or BPW paired with dual-line air brakes and optional WABCO ABS systems.
