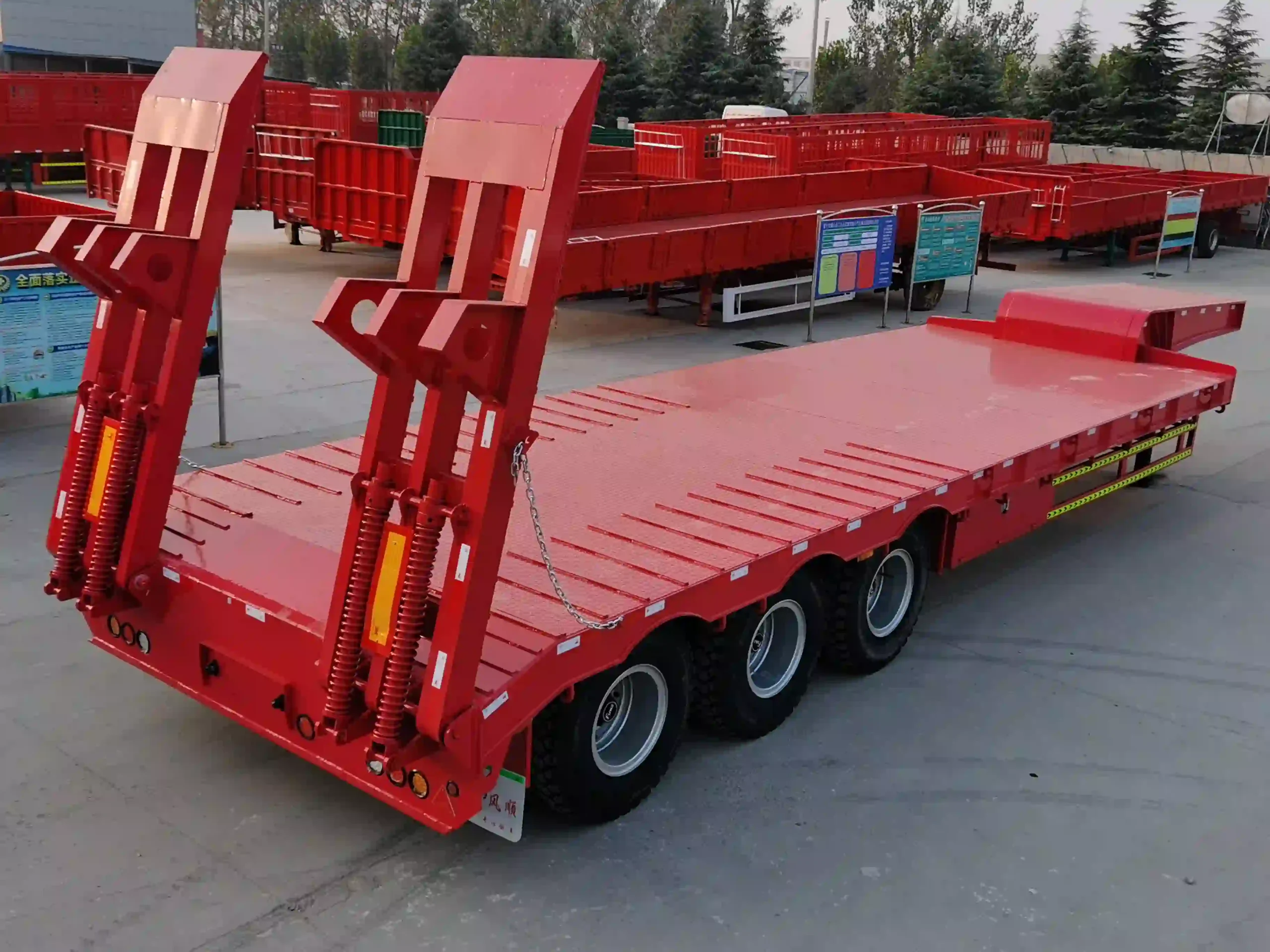

60 Ton 3 Axle Mechanical Ramp Lowbed Trailer

60 Ton 3 Axle Lowbed Trailer Overview

The 60 Ton 3 Axle Mechanical Ramp Lowbed Trailer is a practical heavy equipment transportation solution designed for construction companies, equipment rental businesses, and logistics operators who need a reliable and cost-effective trailer for daily machinery transportation.

Unlike hydraulic lowbed trailers that require additional hydraulic systems, this model adopts a mechanical folding ramp structure, providing a simple and durable loading solution with easier maintenance and lower operating costs.

With a 60 ton loading capacity and 3 axle configuration, this Low Bed Semi Trailer is suitable for transporting various types of construction machinery, including excavators, bulldozers, wheel loaders, rollers, agricultural machines, and other engineering equipment.

The low deck design allows heavy machinery to be loaded and unloaded smoothly, while the reinforced steel frame provides sufficient strength for long-distance transportation. The combination of a strong chassis, mechanical ramp system, and reliable suspension makes this trailer a popular choice for customers who require practical performance and easy maintenance.

RoadKing manufactures mechanical ramp lowbed trailers according to different market requirements, including platform dimensions, axle configuration, suspension type, ramp design, and loading capacity.

Lowbed Semi Trailer Configuration list

ITEM	SPECIFICATION
Loading Capacity	60 Tons
Axle	3 Axles
Dimension	Approx. 13000mm × 3000mm × 1600mm (Customized)
Structure Type	Gooseneck Lowbed Trailer
Application	Construction machinery, excavators, rollers and equipment transportation
Main Beam Material	Q345 High Strength Steel
Main Beam Height	500mm
Platform Type	Low Deck Structure
Ramp Type	Mechanical Folding Ramp
Suspension System	Mechanical Suspension
Axle Capacity	13T Axles
Axle Brand	FUWA / Other Brand Optional
Tire	12R22.5 (12 Pieces)
Rim	9.0×22.5 Steel Rim
Brake System	Air Brake System
ABS System	Optional
Leaf Spring	90mm×13mm×10 Pieces
King Pin	#50 (2") / #90 (3.5")
Landing Gear	28 Ton Two Speed Landing Gear
Loading Platform	Reinforced Steel Deck
Tool Box	Available
Spare Tire Carrier	Available

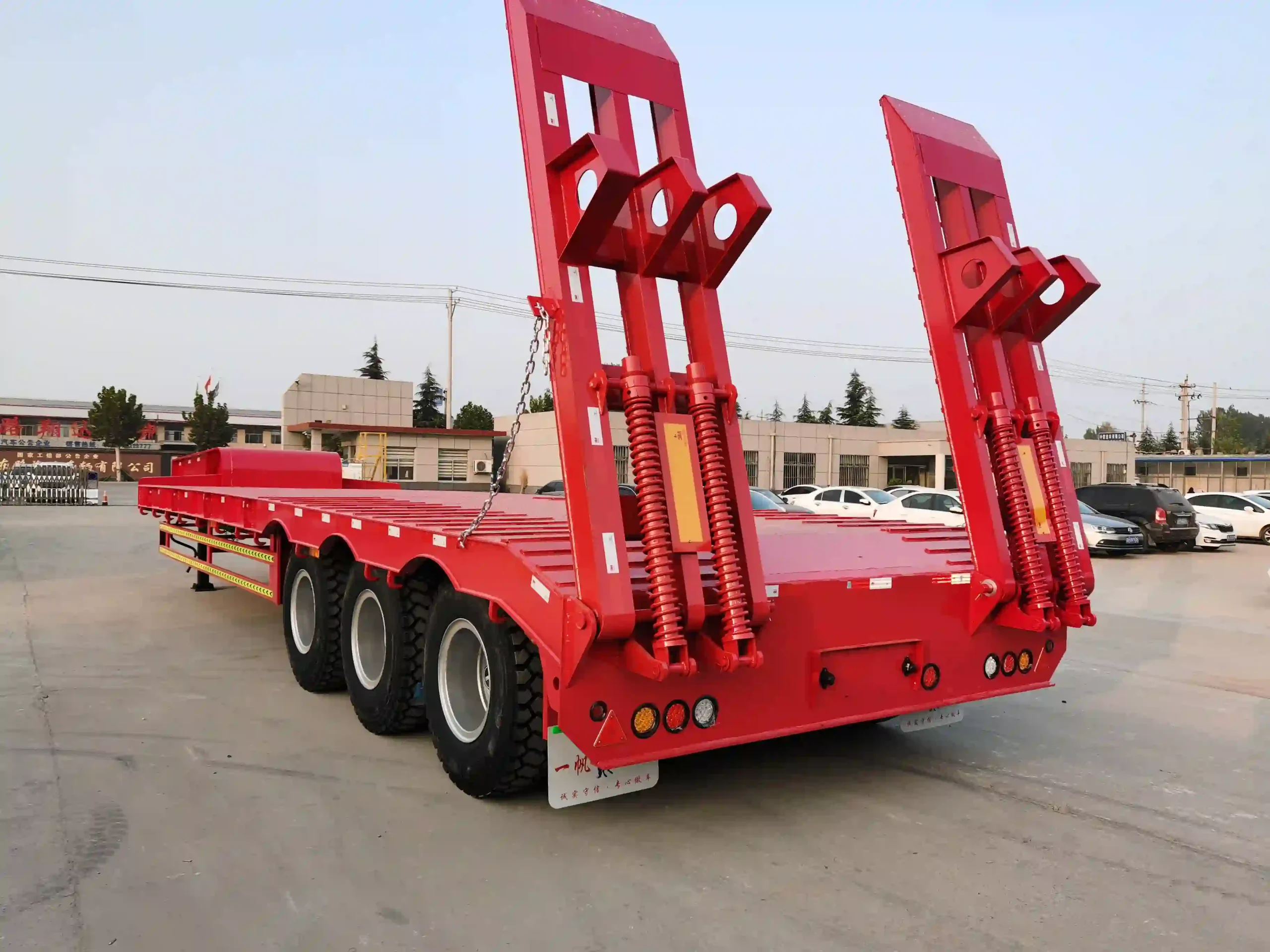

Mechanical Ramp Design for Simple and Reliable Operation

Easy Loading Solution with Lower Maintenance Requirements

The main feature of this model is the mechanical ramp system.

Compared with hydraulic ramps, mechanical ramps have a simpler structure and fewer components, which brings several practical advantages:

• Lower maintenance requirements
• Easier daily inspection
• Reduced operating cost
• No dependence on hydraulic power systems

For many customers operating in areas where maintenance facilities are limited, a mechanical ramp lowbed trailer provides a reliable transportation solution.

The folding ramp design allows construction equipment to drive directly onto the trailer platform. After the equipment is positioned, the ramp can be folded back into the transportation position.

This design is widely used for transporting:

• Excavators
• Bulldozers
• Road rollers
• Loaders
• Agricultural machinery
• Engineering vehicles

For companies that frequently move equipment between construction sites, the simple mechanical ramp structure provides efficient loading performance without complicated operation procedures.

60 Ton Capacity for Construction Machinery Transportation

Designed for Daily Heavy Equipment Operations

The 60 ton loading capacity makes this lowbed trailer suitable for most medium and heavy construction machinery transportation requirements.

Compared with larger 80 ton or 100 ton lowbed trailers, the 60 ton 3 axle configuration provides a balanced solution between transportation capability and operating economy.

It is commonly selected by customers who need to transport:

Construction Equipment

Including:

• Excavators
• Backhoe loaders
• Bulldozers
• Rollers
• Concrete machinery

Agricultural Machinery

Including:

• Large tractors
• Harvesting equipment
• Farming machinery

Industrial Equipment

Including:

• Factory equipment
• Engineering machines
• Heavy components

The trailer provides enough loading capacity for daily transportation tasks while maintaining a more flexible operating cost compared with larger multi-axle trailers.

Reinforced Lowbed Chassis Structure

Strong Frame for Long-Term Transportation

The chassis structure directly affects the reliability of a lowbed trailer.

The 60 Ton 3 Axle Mechanical Ramp Lowbed Trailer adopts a reinforced frame design using high-strength steel materials such as Q345 steel.

The chassis structure is designed to provide:

• Strong load-bearing capability
• Good torsional resistance
• Stable transportation performance
• Long service life

During operation, lowbed trailers often experience repeated loading cycles, vibration, braking forces, and uneven road conditions.

A reinforced frame helps maintain the trailer shape and reduces deformation risks during long-term use.

The low platform structure also helps lower the loading height, improving stability when transporting tall machinery.

Low Deck Structure for Safe Equipment Loading

Suitable for Excavators and Engineering Machines

One of the key advantages of a lowbed trailer is the reduced platform height.

Compared with standard flatbed trailers, lowbed trailers allow equipment to be positioned lower during transportation.

Benefits include:

Easier Equipment Access

The mechanical ramp creates a smooth loading path, allowing self-propelled machinery to move onto the trailer.

Better Stability

The lower deck height helps reduce the center of gravity of the loaded trailer, improving stability during transportation.

Better Height Clearance

For large construction machinery with higher overall dimensions, the lowbed structure helps reduce total transportation height.

This makes the trailer suitable for areas where road conditions and transportation regulations require careful height control.

3 Axle Configuration for Balanced Performance

Practical Choice for Heavy Equipment Transport

The 3 axle configuration provides a practical balance between loading capacity, maneuverability, and operating cost.

Compared with larger multi-axle trailers, a 3 axle lowbed trailer offers:

• Easier operation
• Lower maintenance requirements
• Lower tire and component costs
• Good transportation flexibility

The axle system is designed to support heavy equipment transportation while maintaining stable road performance.

The trailer can be configured with different axle brands according to customer requirements, including:

• FUWA
• BPW
• Other approved axle brands

Different axle capacities and specifications can be selected according to:

• Cargo weight
• Local regulations
• Road conditions

Durable Suspension System

Suitable for Different Transportation Environments

The trailer is equipped with a mechanical suspension system, which is widely used in international heavy transportation markets.

Mechanical suspension provides:

• Strong durability
• Simple structure
• Easy maintenance
• Good adaptability

For many customers, especially those operating in regions with long transportation distances or limited maintenance resources, mechanical suspension remains a practical choice.

It can effectively support heavy equipment transportation while keeping maintenance requirements reasonable.

Mechanical Ramp Lowbed Trailer Application Areas

The 60 Ton 3 Axle Mechanical Ramp Lowbed Trailer is widely used in various industries.

Construction Industry

Commonly used for transporting:

• Excavators
• Loaders
• Rollers
• Bulldozers
• Construction equipment

Construction companies often need to move machinery between different project locations. This trailer provides a convenient solution for equipment transfer.

Infrastructure Projects

Suitable for:

• Road construction
• Bridge projects
• Urban development projects

Agricultural Operations

Can be used for transporting:

• Large tractors
• Agricultural machinery
• Harvesting equipment

Cost-Effective Transportation Solution

Compared with hydraulic lowbed trailers, the mechanical ramp design provides a more economical option for customers who prioritize reliability and maintenance simplicity.

Advantages include:

• Lower initial investment
• Easier maintenance
• Fewer hydraulic components
• Reliable operation

This makes the trailer especially suitable for:

• Small and medium transportation companies
• Equipment rental companies
• Construction contractors
• Regional logistics operators

Customization Options

RoadKing provides customized lowbed trailer solutions according to different customer requirements.

Available options include:

• Platform length
• Platform width
• Loading capacity
• Ramp design
• Axle brand
• Suspension type
• Tire brand
• Painting color
• Customer logo

For different types of equipment, the trailer dimensions and loading structure can be adjusted to achieve better transportation performance.

Quality Manufacturing Process

RoadKing focuses on producing reliable lowbed trailers for international markets.

During production, key manufacturing processes are controlled carefully, including:

• Steel material inspection
• Frame welding inspection
• Axle installation checking
• Suspension assembly inspection
• Final appearance inspection

Each trailer is checked before delivery to ensure the structure and components meet customer requirements.

Why Choose RoadKing 60 Ton 3 Axle Mechanical Ramp Lowbed Trailer

The 60 Ton 3 Axle Mechanical Ramp Lowbed Trailer is designed by China lowbed semi trailer manufacturer for customers who need a reliable, practical, and easy-to-maintain heavy equipment transportation solution.

Main advantages:

✓ 60 ton loading capacity for construction machinery
✓ 3 axle configuration with balanced performance
✓ Mechanical ramp design with simple maintenance
✓ Reinforced Q345 steel chassis structure
✓ Low deck design for easier equipment loading
✓ Suitable for construction and agricultural machinery
✓ Flexible customization options available

RoadKing provides practical lowbed trailer solutions for global customers, helping construction companies, logistics operators, and equipment owners transport machinery safely and efficiently.
