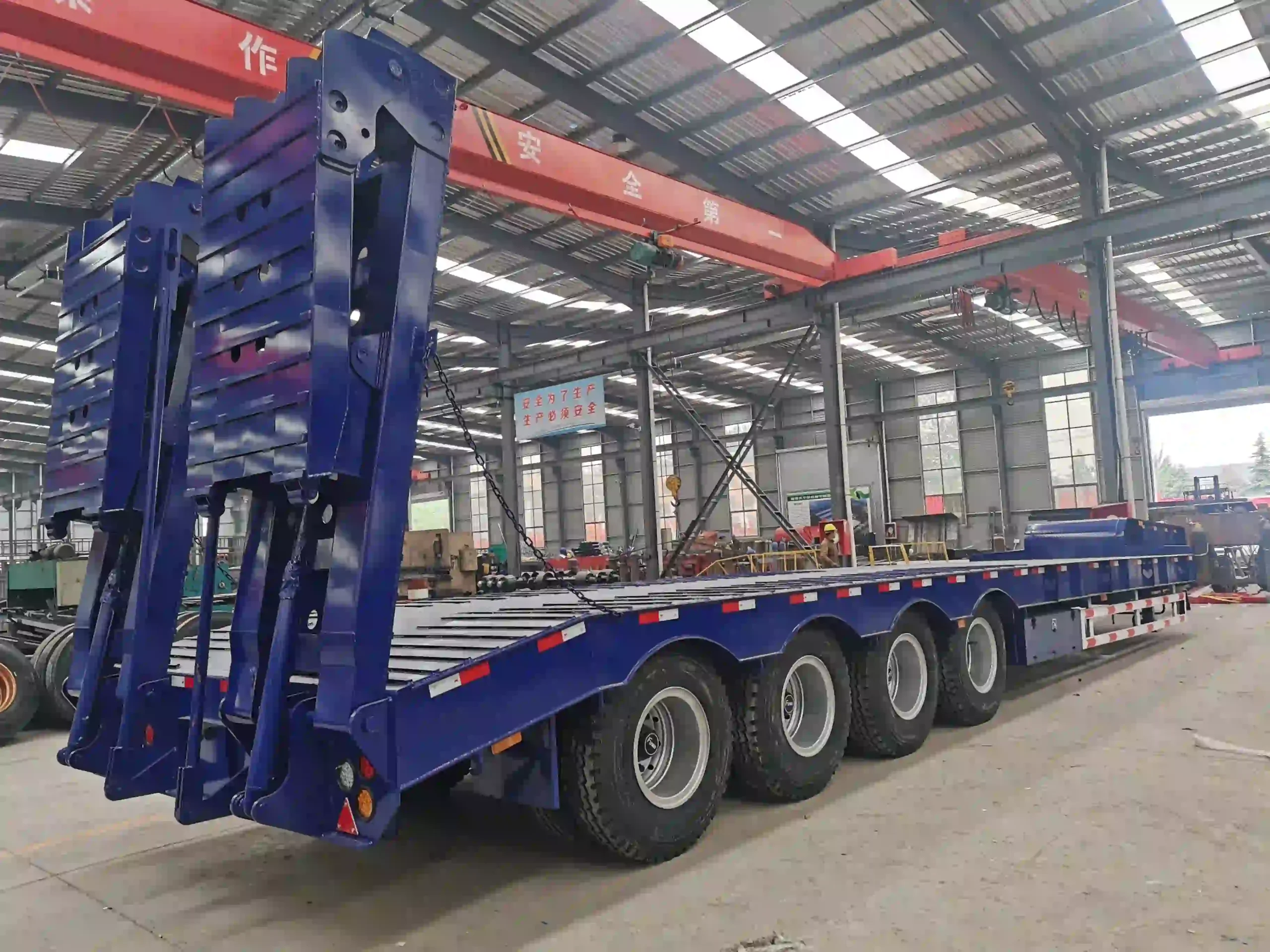

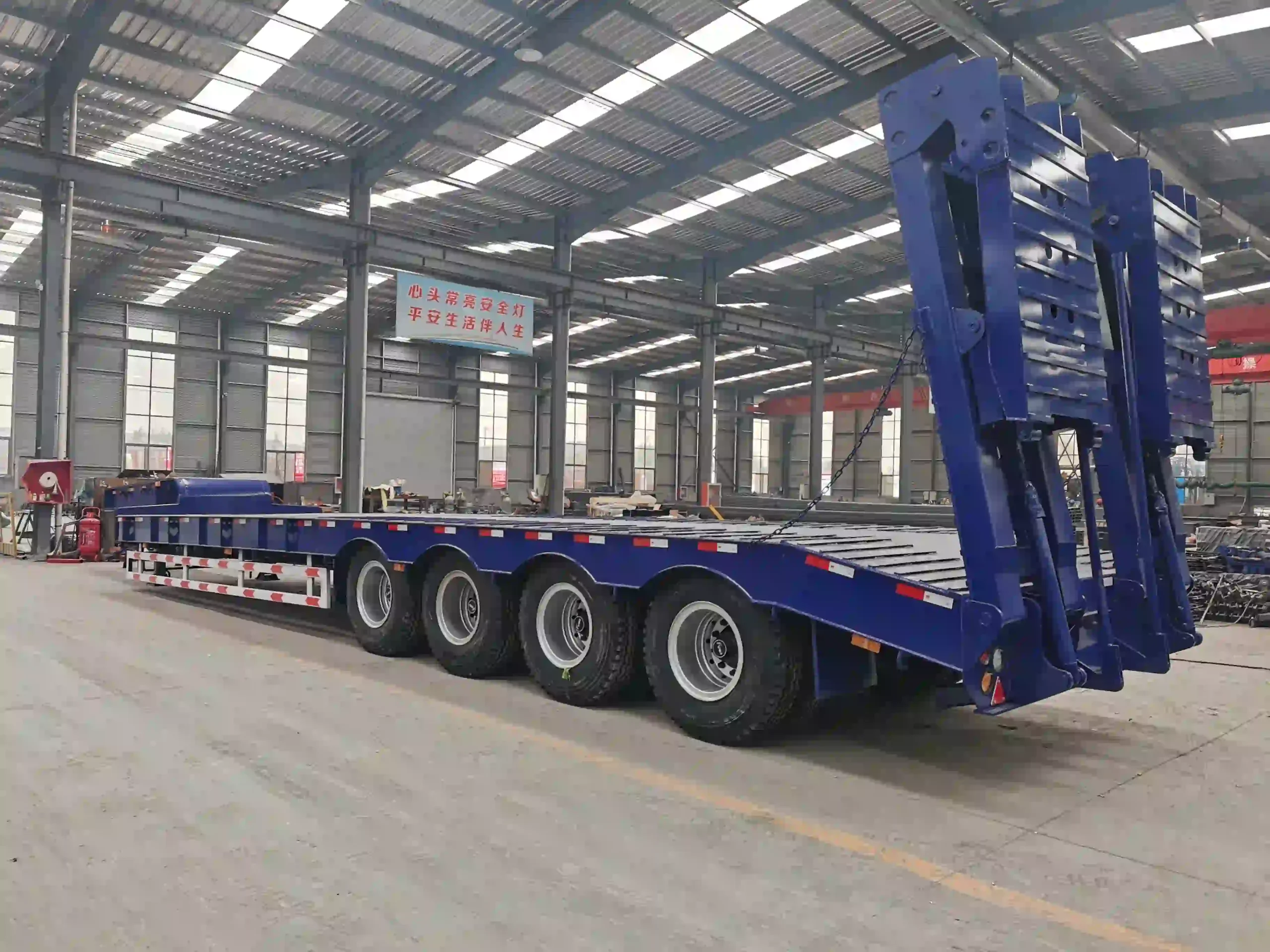

80 Ton 4 Axle Hydraulic Lowbed Trailer
Hydraulic Detachable Lowbed Trailer for Heavy Equipment
The 80 Ton 4 Axle Hydraulic Lowbed Trailer is a heavy-duty transport solution designed for moving excavators, bulldozers, loaders, mining machinery, and other oversized equipment.
Unlike conventional lowbed trailers that use fixed mechanical ramps, this hydraulic lowbed trailer features a hydraulic loading system that makes equipment loading and unloading more convenient. The controlled hydraulic ramp movement helps operators reduce manual handling and improve loading efficiency on construction sites and other demanding work environments.
With an 80 ton payload capacity, 4 axle configuration, and reinforced low deck, the Low Bed Semi Trailer provides a practical combination of load capacity, stability, and flexibility for heavy machinery transportation.
The main frame can be manufactured using high-strength steel such as Q345 and T700, while the platform, suspension, axle, braking, and hydraulic systems can be configured according to the customer's operating requirements.
RoadKing supports customization of the trailer's platform dimensions, axle configuration, hydraulic system, suspension, ramps, and other components for different heavy haulage applications.
Key Features at a Glance
The 80 Ton 4 Axle Hydraulic Lowbed Trailer is designed around the needs of heavy equipment transport.
Key advantages include:
- 80 ton loading capacity for heavy construction and mining equipment
- 4 axle configuration for improved load distribution
- Hydraulic loading system for smoother equipment loading and unloading
- Low deck structure for a lower center of gravity and reduced overall transport height
- Q345/T700 high-strength steel for the main beam and reinforced chassis
- Heavy-duty suspension for demanding road conditions
- Customizable dimensions and configurations for different machinery and markets
- Multiple axle and tire options according to customer requirements
Technical Specifications
| Item | Specification |
|---|---|
| Loading Capacity | 80 Tons |
| Axle | 4 Axles |
| Overall Dimension | Approx. 13,500 × 3,000 × 1,600 mm, Customized |
| Structure Type | Hydraulic Lowbed Trailer with Gooseneck |
| Application | Excavators, bulldozers, loaders, mining and heavy machinery |
| Main Beam Material | Q345 / T700 High Strength Steel |
| Main Beam Height | 500 mm |
| Platform | Reinforced Low Deck |
| Hydraulic System | Hydraulic Cylinder + Hydraulic Power Unit |
| Ramp Type | Hydraulic Ramp |
| Suspension | Mechanical / Air Suspension Optional |
| Axle Capacity | 13T / 16T |
| Axle Brand | FUWA / BPW / Other Brands Optional |
| Tire | 12R22.5, 16 Pieces |
| Rim | 9.0 × 22.5 Steel Rim / Aluminum Rim Optional |
| Brake System | Air Brake System |
| ABS | Optional |
| Leaf Spring | Heavy-Duty Leaf Spring |
| King Pin | #50 (2") / #90 (3.5") |
| Landing Gear | 28 Ton Two-Speed Landing Gear |
| Tool Box | Steel / Aluminum Optional |
| Spare Tire Carrier | Included |
| Surface Treatment | Powder Coating |
| Customization | Platform Length, Width, Ramp and Axle Configuration |
Note: Actual specifications can be adjusted according to cargo dimensions, payload requirements, road regulations, and destination-market requirements.
Hydraulic Loading System for Easier Equipment Handling
Reduce Manual Loading Work
One of the main advantages of this model is its hydraulic loading system.
Heavy machinery is often difficult to load using conventional ramps, particularly when the equipment is large, heavy, or frequently moved between different job sites. A hydraulic ramp provides controlled movement and can make the loading process more convenient.
The system is suitable for transporting:
- Excavators
- Bulldozers
- Wheel loaders
- Road rollers
- Mining equipment
- Engineering machinery
The hydraulic loading system can help operators:
- Reduce loading preparation time
- Minimize manual ramp adjustment
- Improve loading convenience
- Provide smoother equipment access
- Improve operational efficiency
For contractors and equipment rental companies that regularly move machinery between sites, this can make a significant difference in daily operations.
Why Choose the RoadKing 80 Ton Hydraulic Lowbed Trailer?
The 80 Ton 4 Axle Hydraulic Lowbed Trailer is designed by China lowbed semi trailer manufacturer for customers who need a reliable solution for transporting heavy and oversized machinery.
80 Ton Payload Capacity
Suitable for demanding construction, mining, and infrastructure applications.
Hydraulic Loading System
Provides controlled ramp operation and helps simplify machinery loading and unloading.
Low Deck Structure
Helps lower the center of gravity and reduce overall transportation height.
Reinforced Chassis
Q345/T700 high-strength steel options provide a strong structural foundation for heavy loads.
4 Axle Configuration
Helps distribute heavy cargo across the trailer for improved transportation stability.
Flexible Customization
Platform dimensions, axles, suspension, ramps, hydraulic systems, and other components can be configured according to application requirements.
Hydraulic Lowbed Trailer FAQ
What is an 80 Ton Hydraulic Lowbed Trailer used for?
It is primarily used to transport heavy construction, mining, engineering, and industrial machinery such as excavators, bulldozers, loaders, and road rollers.
What is the advantage of a hydraulic lowbed trailer?
The hydraulic loading system provides controlled ramp operation, reducing manual handling and making heavy equipment loading and unloading more convenient.
Why does a lowbed trailer have a low deck?
The low deck helps reduce the loaded center of gravity and overall transport height, which can improve stability and provide greater overhead clearance for tall machinery.
Why use 4 axles for an 80 ton lowbed trailer?
Four axles help distribute the heavy cargo load across multiple axle groups and can improve load distribution and transportation stability.
