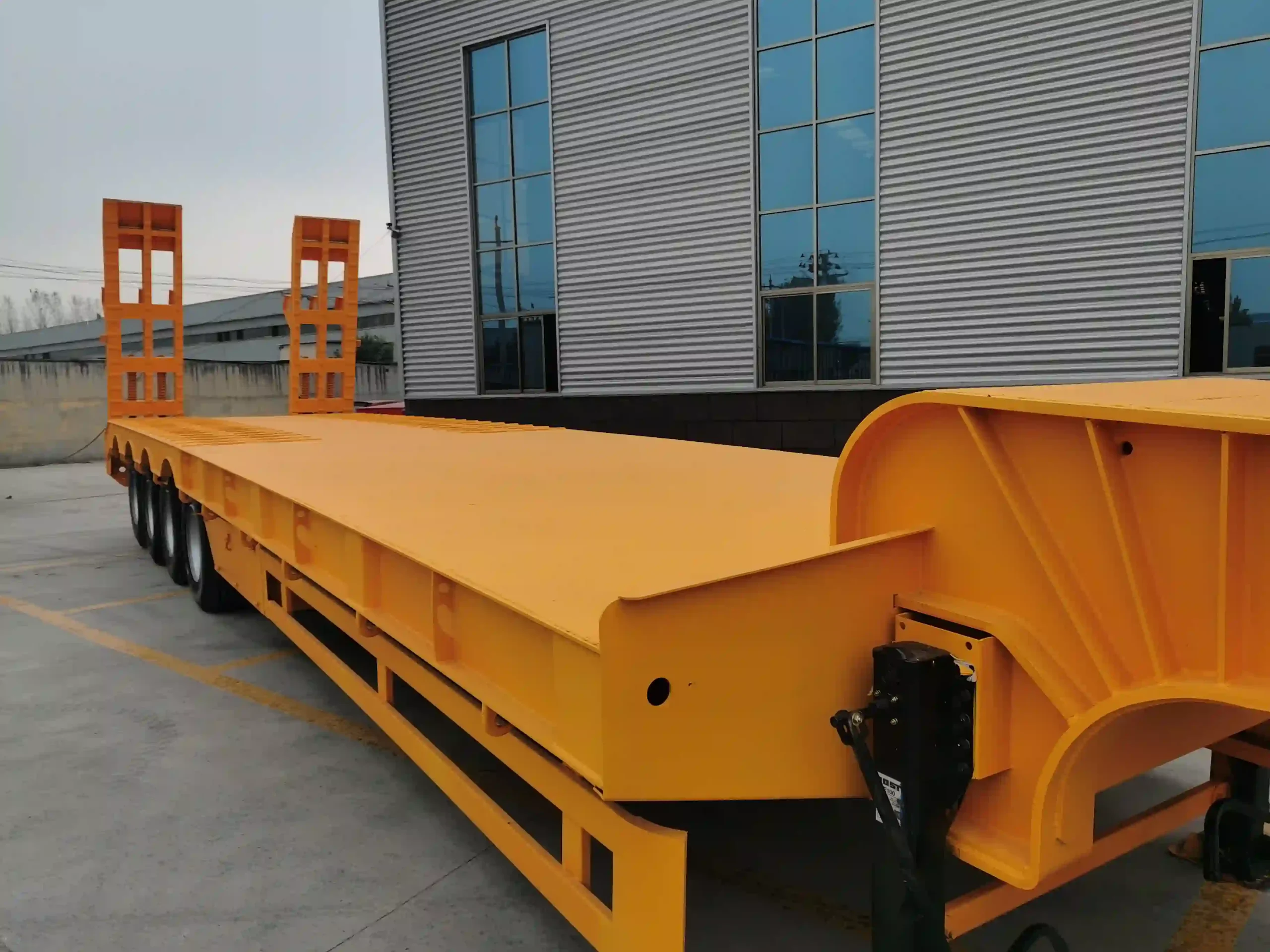

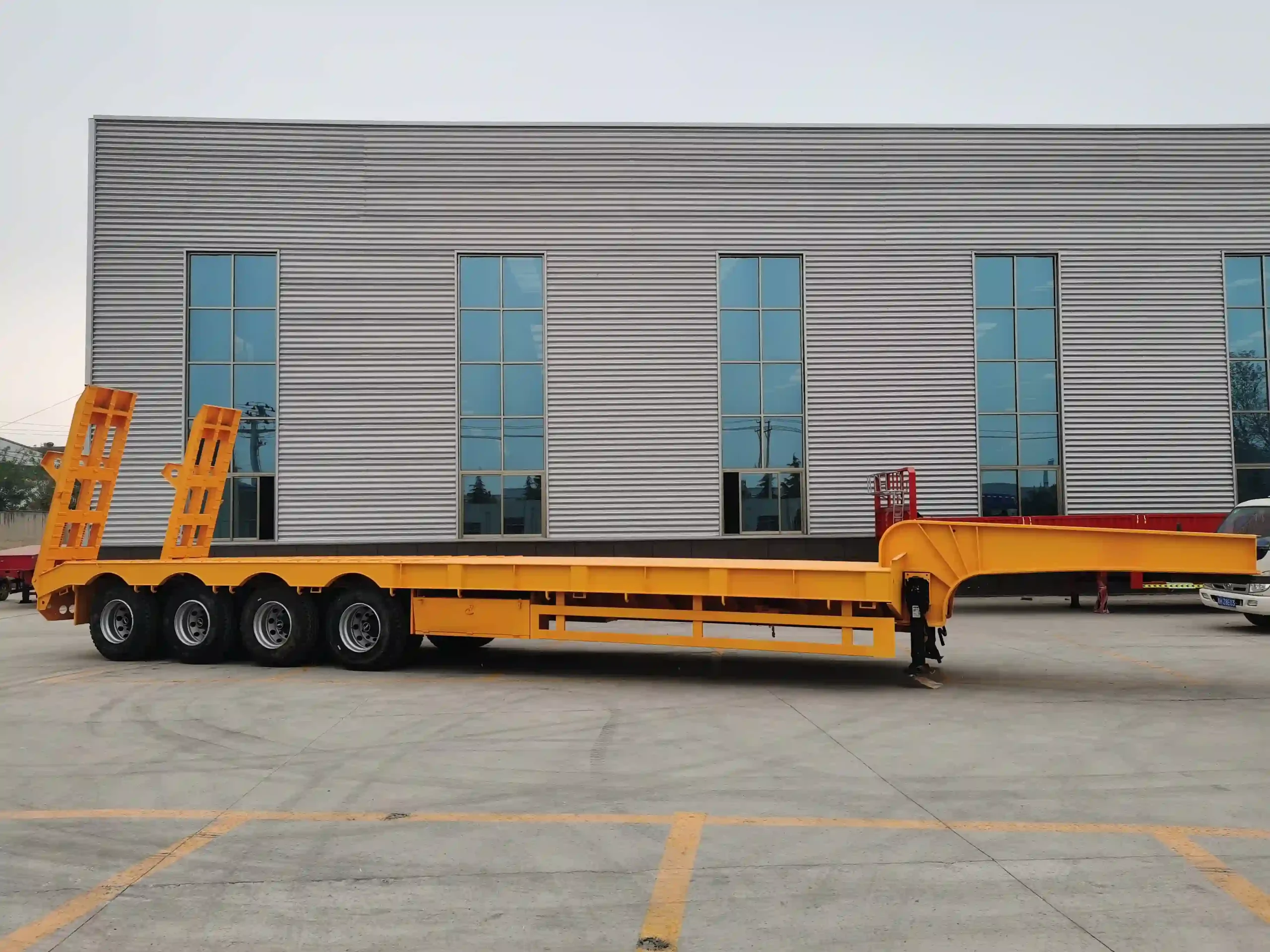

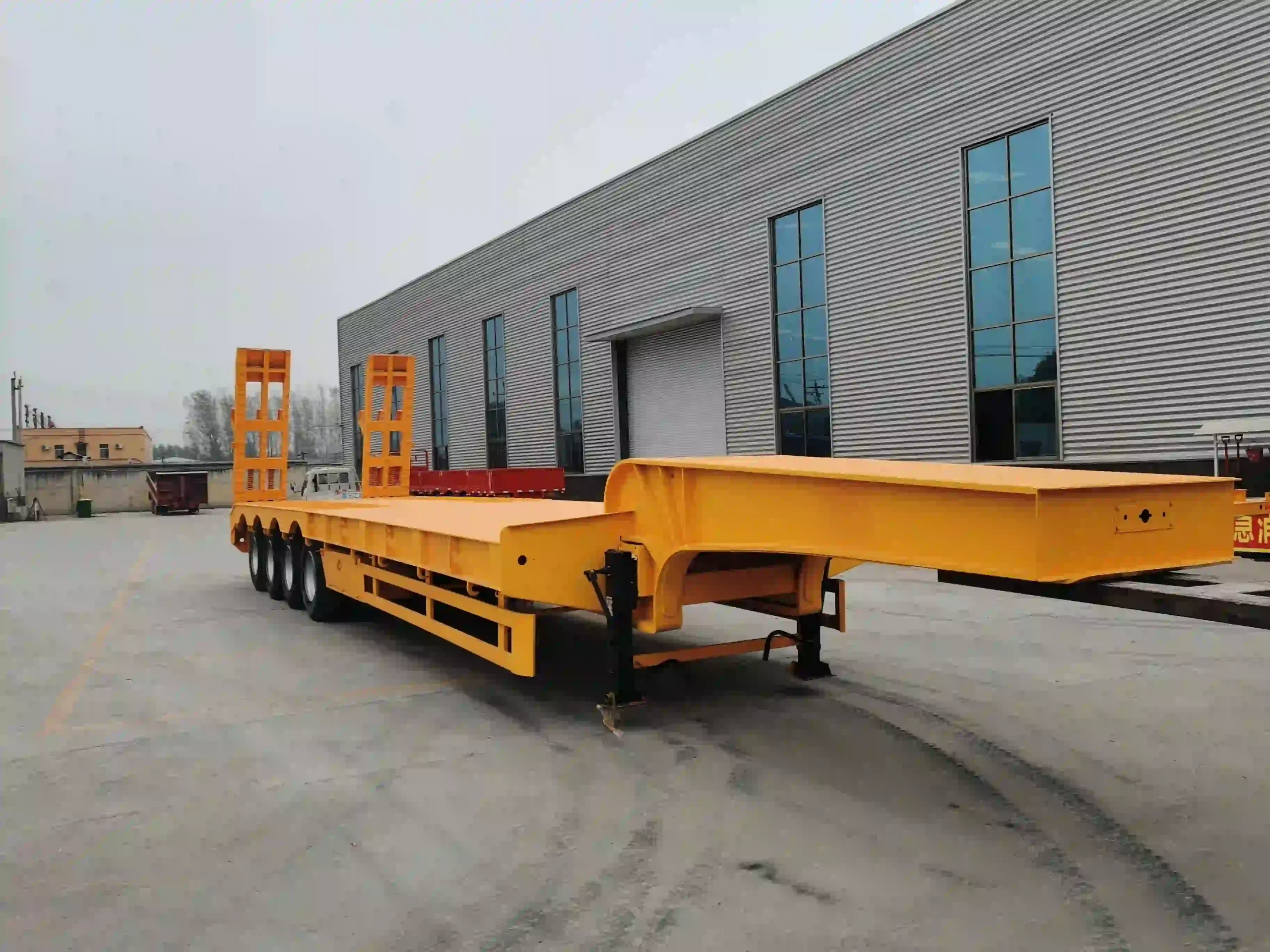

80 Ton 4 Axle Heavy Duty Lowbed Trailer
Heavy Duty Lowbed Trailer Overview
The 80 Ton 4 Axle Heavy Duty Lowbed Trailer is designed for customers who require a strong and reliable transportation solution for large construction machinery, mining equipment, and other heavy-duty cargo.
Different from standard lowbed trailers, this model focuses on high load-bearing capability and reinforced structural performance. With an 80 ton loading capacity and 4 axle configuration, it provides improved weight distribution and stable operation when transporting heavy equipment over long distances.
This heavy-duty Low Bed Semi Trailer is widely used for transporting excavators, bulldozers, cranes, loaders, mining machines, and other oversized equipment. The reinforced chassis structure and low platform design provide strong support while maintaining convenient loading conditions.
For industries such as construction, mining, infrastructure development, and heavy equipment rental, reliable machinery transportation is essential. The 80 Ton 4 Axle Heavy Duty Lowbed Trailer provides a practical solution for moving expensive and heavy equipment safely between different working locations.
RoadKing manufactures heavy-duty lowbed trailers according to different transportation requirements, including loading capacity, platform dimensions, axle configuration, suspension systems, and cargo specifications.
Lowbed Semi Trailer Configuration list
| ITEM | SPECIFICATION |
| Loading Capacity | 80 Tons |
| Axle | 4 Axles |
| Dimension | Approx. 13500mm × 3000mm × 1600mm (Customized) |
| Structure Type | Heavy Duty Gooseneck Lowbed Trailer |
| Application | Heavy machinery, mining equipment and oversized cargo transportation |
| Main Beam Material | Q345 / T700 High Strength Steel |
| Main Beam Height | 500mm |
| Platform Structure | Reinforced Low Platform Design |
| Ramp Type | Mechanical Ramp |
| Suspension System | Mechanical Suspension / Air Suspension Optional |
| Axle Capacity | 13T / 16T Axles |
| Axle Brand | FUWA / BPW / Other Brand Optional |
| Tire | 12R22.5 (16 Pieces) |
| Rim | 9.0×22.5 Steel Rim |
| Brake System | Air Brake System |
| ABS System | Optional |
| Leaf Spring | Heavy Duty Leaf Spring |
| King Pin | #90 (3.5") JOST / Other Brand |
| Landing Gear | 28 Ton Two Speed Landing Gear |
| Deck Material | High Strength Steel Plate |
| Tool Box | Steel / Aluminum Optional |
| Spare Tire Carrier | Included |
Heavy Duty Structure for High Load Transportation
Reinforced Design for Demanding Applications
The most important feature of this trailer is its heavy-duty structural design.
During the transportation of large machinery, the trailer frame is exposed to continuous pressure from heavy loads, road vibration, braking forces, and uneven surfaces.
To handle these conditions, the trailer adopts a reinforced chassis structure manufactured with high-strength steel materials such as Q345 and T700.
The reinforced structure improves:
- Load-bearing performance
- Frame strength
- Anti-torsion capability
- Long-term durability
The main frame, cross beams, and supporting structures work together to create a stable platform for heavy equipment transportation.
This design is especially suitable for customers who need frequent transportation of heavy machinery in construction sites, mining areas, and industrial projects.
80 Ton Capacity for Heavy Machinery Applications
Built for Large Equipment Transportation
The 80 ton loading capacity makes this model suitable for transporting a wide range of heavy equipment.
Typical cargo includes:
Construction Machinery
- Large excavators
- Bulldozers
- Wheel loaders
- Road rollers
- Concrete machinery
Mining Equipment
- Mining machines
- Quarry equipment
- Heavy engineering vehicles
Industrial Equipment
- Large machinery components
- Factory equipment
- Special transportation cargo
Compared with smaller lowbed trailers, the 80 ton configuration provides additional capacity for customers who need to transport larger machines or heavier loads.
The trailer offers a practical balance between transportation capability and operating flexibility.
4 Axle Configuration for Improved Stability
Better Weight Distribution During Transportation
The 4 axle design is an important feature of this heavy-duty lowbed trailer.
Multiple axle configurations help distribute cargo weight more evenly across the trailer structure, reducing concentrated pressure on individual components.
Advantages include:
- Improved load balance
- Better driving stability
- Reduced stress on chassis components
- Improved tire service life
For heavy equipment transportation, stability is especially important because the cargo often has a high center of gravity and large dimensions.
The 4 axle structure helps maintain better control during:
- Highway transportation
- Long-distance hauling
- Turning operations
- Uneven road conditions
Different axle brands and specifications can be selected according to customer requirements and local regulations.
Low Platform Design for Equipment Transportation
Suitable for Oversized Machinery
The lowbed structure is designed to reduce loading height and improve transportation safety.
Compared with ordinary flatbed trailers, lowbed trailers provide:
Lower Loading Height
The reduced deck height makes it easier to load heavy equipment using ramps.
Better Height Clearance
Large construction machines often have considerable height dimensions. A lower platform helps reduce overall transportation height.
Improved Stability
The lower center of gravity helps improve stability when transporting heavy equipment.
This makes the trailer suitable for oversized machinery that requires special transportation solutions.

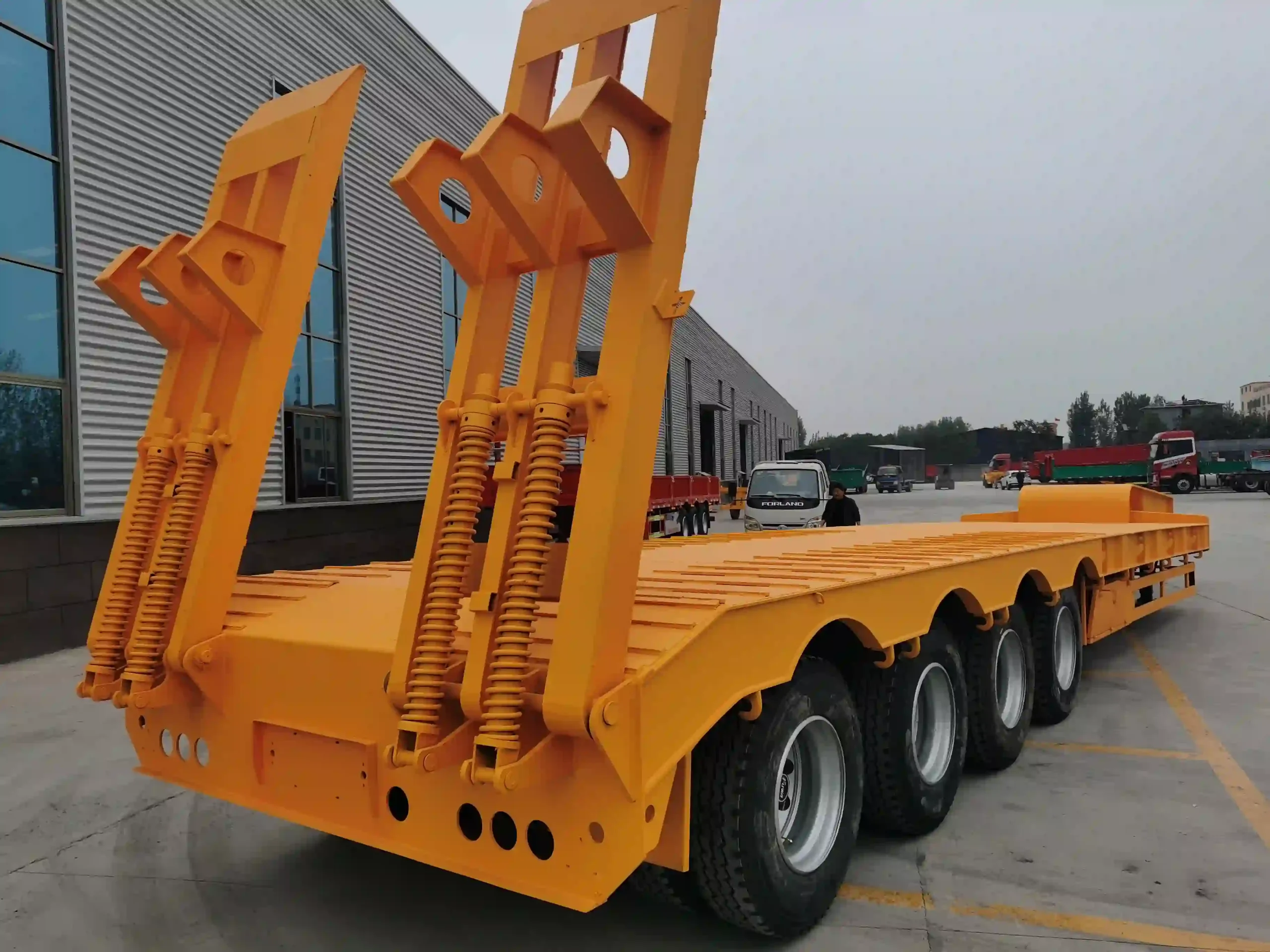

Mechanical Ramp System for Practical Operation
Reliable Loading Solution
This model uses a mechanical ramp structure, providing a durable and practical loading solution.
Mechanical ramps are widely used in heavy equipment transportation because they offer:
- Simple operation
- Easy maintenance
- Strong durability
- Lower maintenance requirements
Operators can drive self-propelled equipment directly onto the trailer platform through the ramps.
This structure is suitable for companies that require reliable daily transportation without complicated hydraulic systems.
Heavy Duty Suspension System
Designed for Long-Term Operation
The suspension system plays an important role in supporting heavy cargo.
The trailer can be equipped with mechanical suspension or air suspension according to customer requirements.
Mechanical Suspension
Mechanical suspension is commonly selected for heavy-duty transportation because of:
- Strong durability
- Simple structure
- Easy maintenance
- Good adaptability
Air Suspension (Optional)
For customers requiring improved comfort and reduced vibration impact, air suspension can be selected.
Different suspension solutions allow the trailer to adapt to various transportation environments.
Applications in Mining and Construction
The 80 Ton 4 Axle Heavy Duty Lowbed Trailer is widely used in industries where heavy equipment movement is required.
Mining Industry
Mining operations often require transportation of large machines between working areas.
This trailer can transport:
- Mining excavators
- Heavy machinery
- Quarry equipment
Construction Industry
Suitable for:
- Infrastructure projects
- Road construction
- Building projects
Equipment Rental Industry
Rental companies often need flexible solutions for moving machinery between different customers and project locations.
The strong structure and high capacity make this trailer a suitable choice for professional equipment transportation.
Customization Options
RoadKing provides customized lowbed trailer solutions according to different customer needs.
Available options include:
- Loading capacity
- Trailer length
- Platform width
- Ramp design
- Axle number
- Suspension type
- Tire brand
- Painting color
- Customer logo
For oversized equipment transportation, customized dimensions can be developed according to machine size and transportation regulations.
Manufacturing Quality Control
RoadKing focuses on producing durable lowbed trailers for global markets.
During manufacturing, key processes include:
- Steel material inspection
- Frame welding inspection
- Axle installation checking
- Suspension assembly inspection
- Final product inspection
The production process ensures that each trailer meets customer requirements before delivery.
Why Choose RoadKing 80 Ton 4 Axle Heavy Duty Lowbed Trailer
The 80 Ton 4 Axle Heavy Duty Lowbed Trailer is developed for customers who need a strong, stable, and reliable solution for transporting large machinery.
Main advantages:
✓ 80 ton heavy-duty loading capability
✓ 4 axle configuration for better weight distribution
✓ Reinforced Q345/T700 steel chassis
✓ Low platform design for heavy equipment transportation
✓ Durable mechanical ramp structure
✓ Suitable for mining and construction applications
✓ Customized solutions available
RoadKing China lowbed semi trailer manufacturer provides solutions for global customers, supporting efficient transportation of heavy machinery in construction, mining, and industrial applications.
