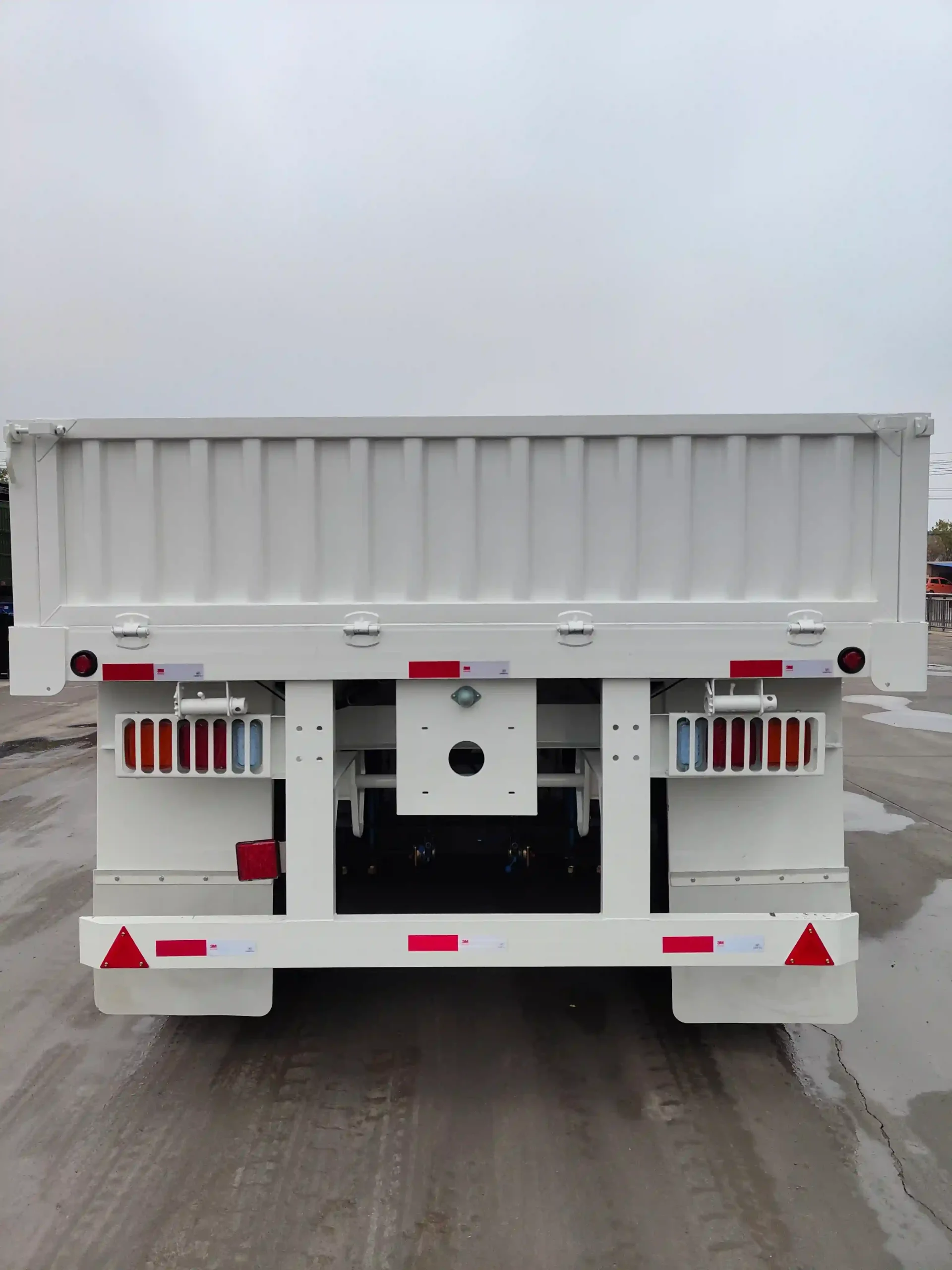

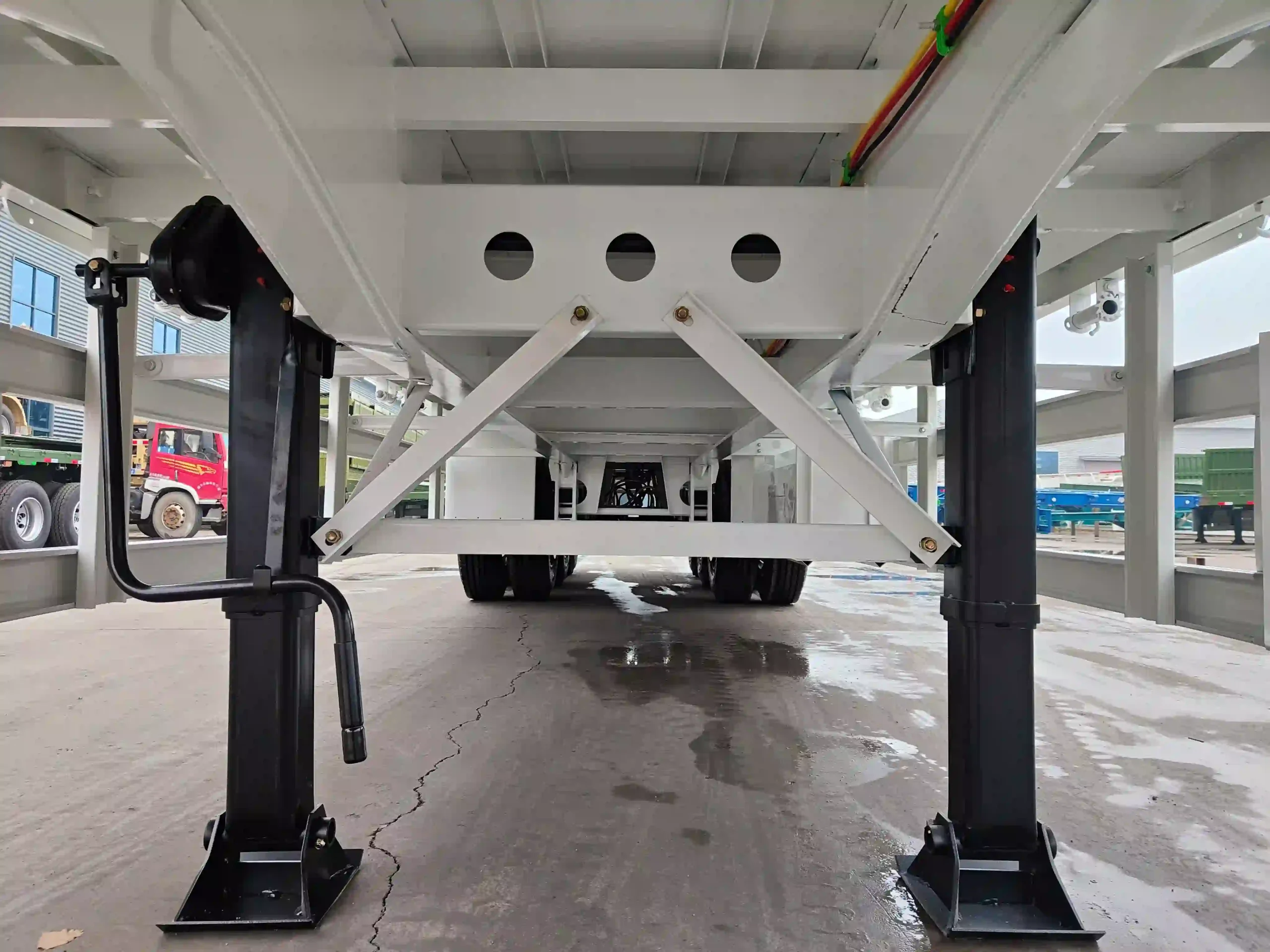

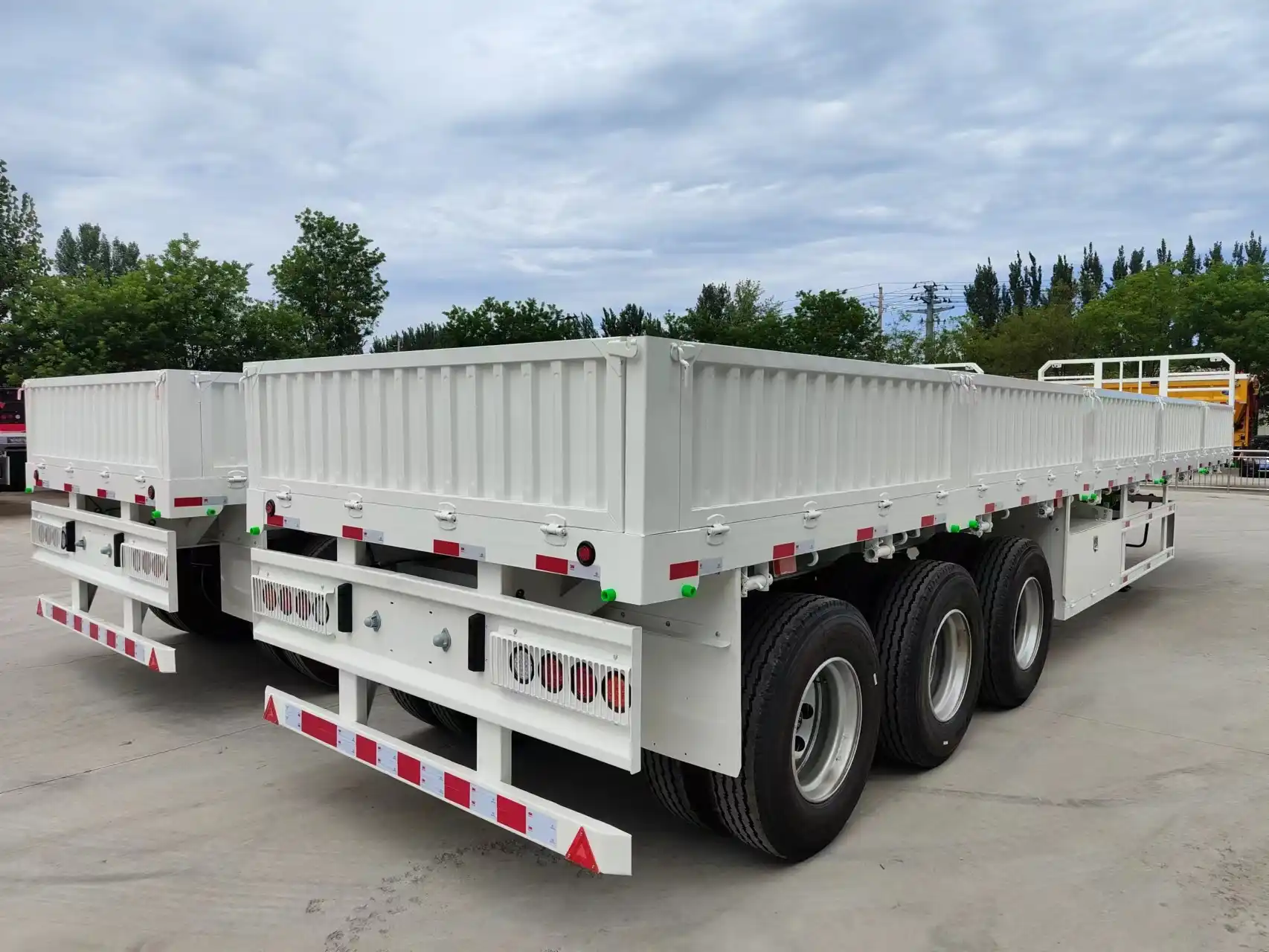

Reinforced Fence Cargo Trailer for Overweight Cargo Transport
The reinforced fence cargo trailer is purpose-built for demanding transport tasks involving overweight and heavy cargo. Designed with a strengthened frame and upgraded structural components, it is capable of handling higher stress levels and continuous heavy-duty operations in challenging environments.
The fence-style structure offers flexibility in loading oversized or irregular cargo while maintaining secure containment during transport. This Steel sidewall trailer makes it suitable for a wide range of heavy materials, including industrial equipment, construction components, and bulk goods that require strong support.
Engineered for durability and safety, this trailer performs reliably under harsh road conditions and high-load requirements. It is particularly well-suited for industries such as construction, mining, and heavy logistics, where equipment strength and load capacity are critical factors.
Reinforced Fence Cargo Trailer Parameters
| Brand | ROADKING |
| Item | 4 Axles Side Wall Semi Trailer |
| Loading Capacity | 40–100T |
| Gooseneck Type | Optional |
| Main Beam Material | Q345 / T700 |
| Upper Plate Thickness | 18mm |
| Middle Plate Thickness | 12mm |
| Lower Plate Thickness | 20mm |
| Main Beam Height | 500mm |
| Dimensions (L×W) | 13000×2550mm |
| Side Wall Height | 600–1700mm |
| Axle | 4 Axles × 13/16 Ton, VEHICLE MASTER / FUWA / BPW / Other |
| Tire | 12R22.5 (16 pcs), Linglong / Triangle / Double Coin / Bridgestone / Other |
| Rim | 9.00×22.5 (16 pcs), Steel / Aluminum |
| Leaf Spring | 90×13mm×10 pcs / 90×16mm×10 pcs |
| King Pin | #50 (2") / #90 (3.5"), JOST / Other |
| Landing Gear | 28 Tons Two Speed, JOST / Other |
| Painting | Electrophoresis Painting |
Key Advantages
Heavy Duty Construction
Reinforced chassis structure ensures reliable performance under extreme load conditions.
Enhanced Durability
Built with high-strength materials to withstand continuous heavy-duty operations.
Secure Cargo Containment
Fence-style side structure provides flexibility for loading while keeping cargo stable.
Adapted for Harsh Conditions
Suitable for rough roads, industrial zones, and heavy-load logistics tasks.
Typical Applications
- Overweight cargo transportation
- Industrial and project logistics
- Mining and construction site transport
- Long-distance heavy freight operations
Structural & Design Highlights
This trailer produced by China sidewall trailer manufacturer adopts a reinforced beam structure with upgraded load-bearing components to handle extreme weights. The fence design allows flexible cargo handling while maintaining safety. Its robust chassis and suspension system ensure stability and durability even in challenging working conditions.
