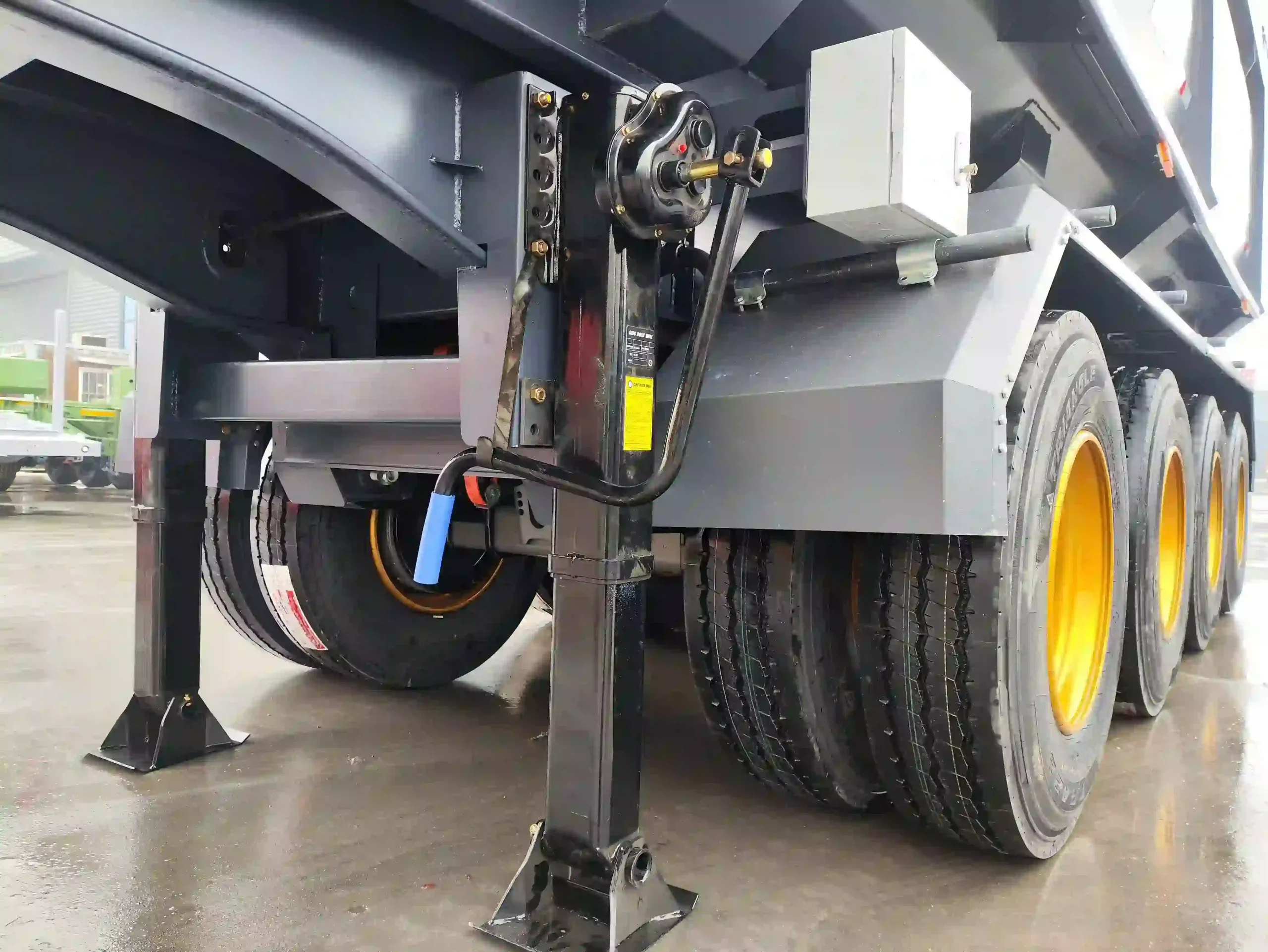

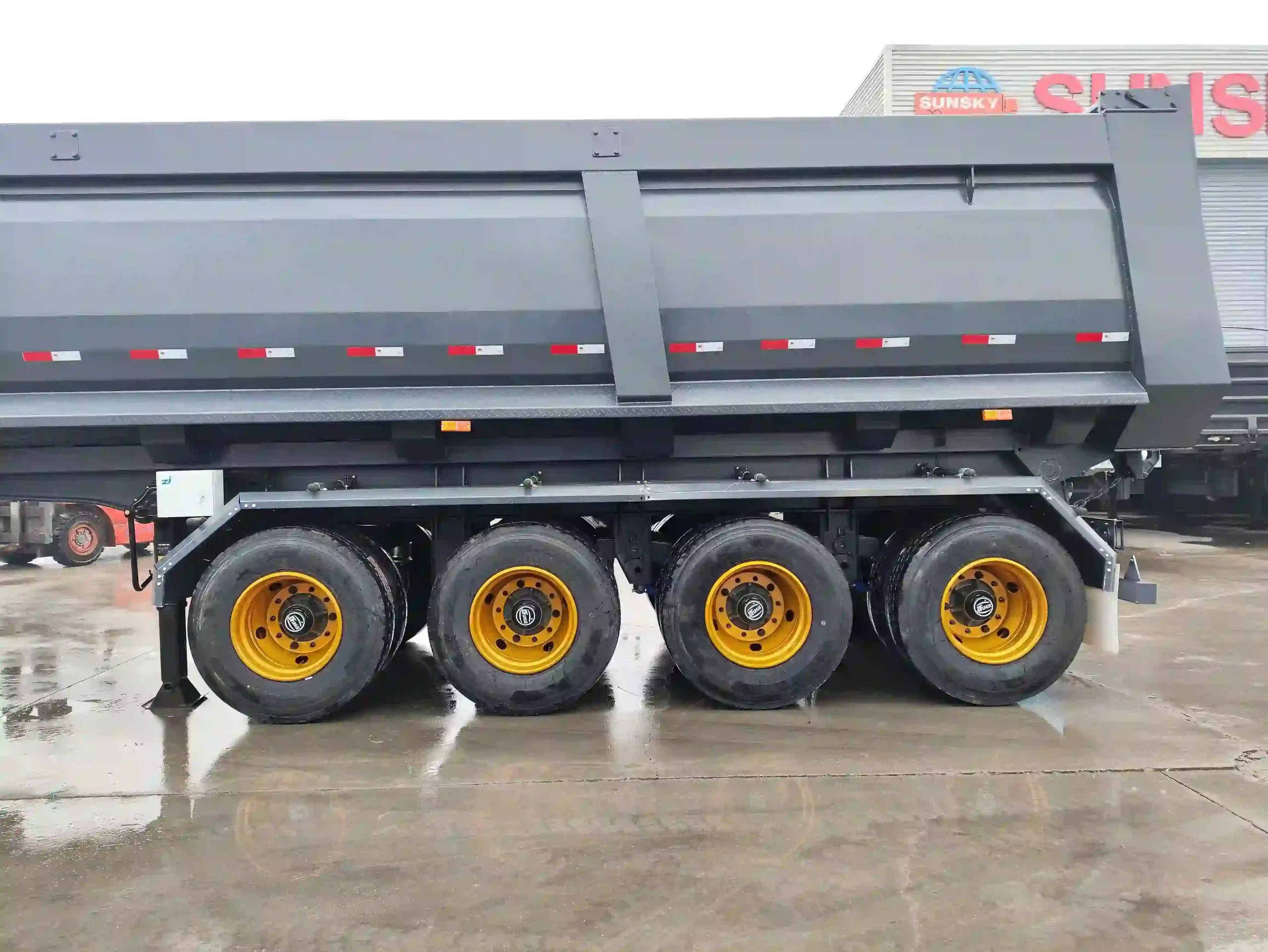

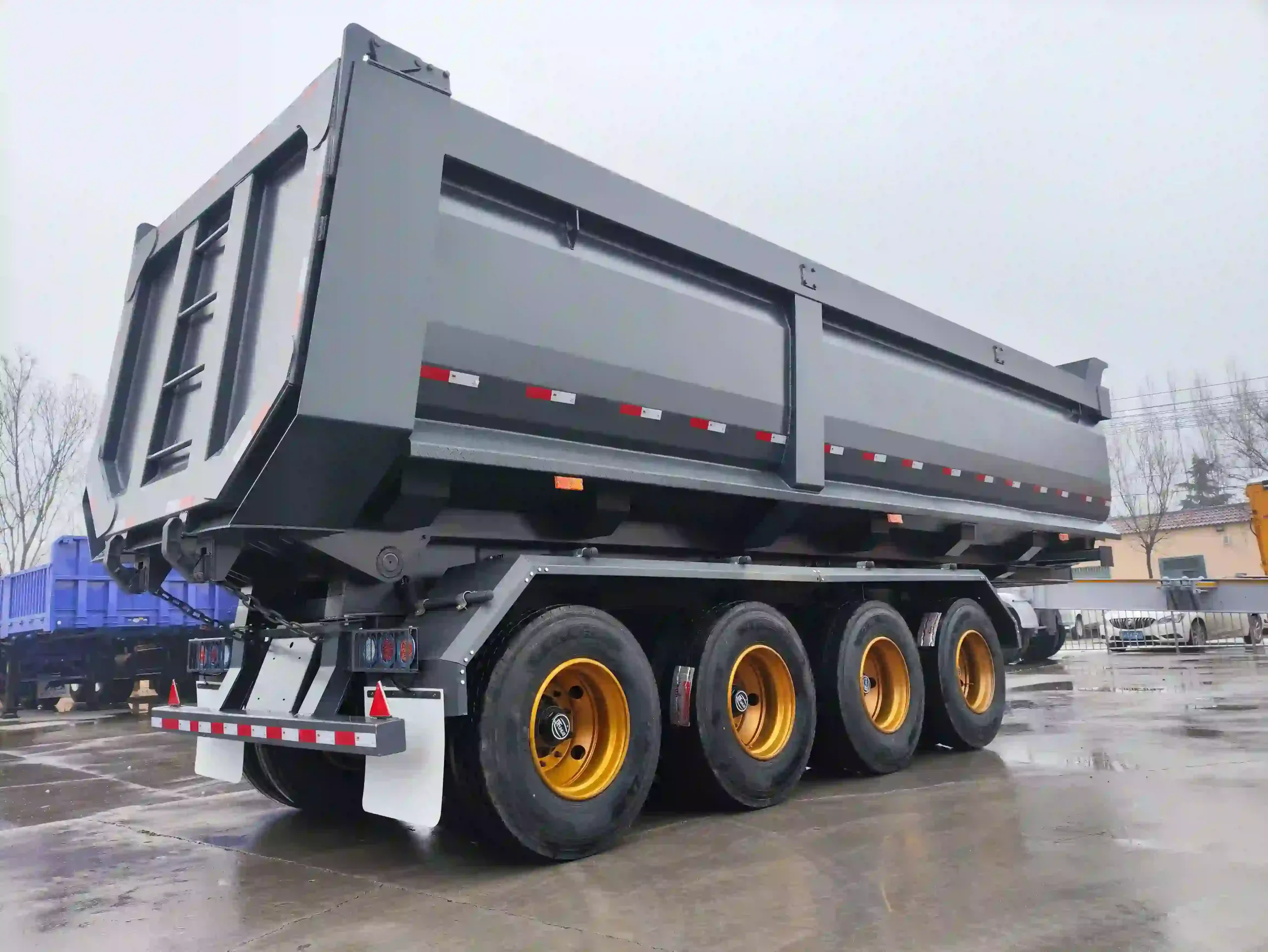

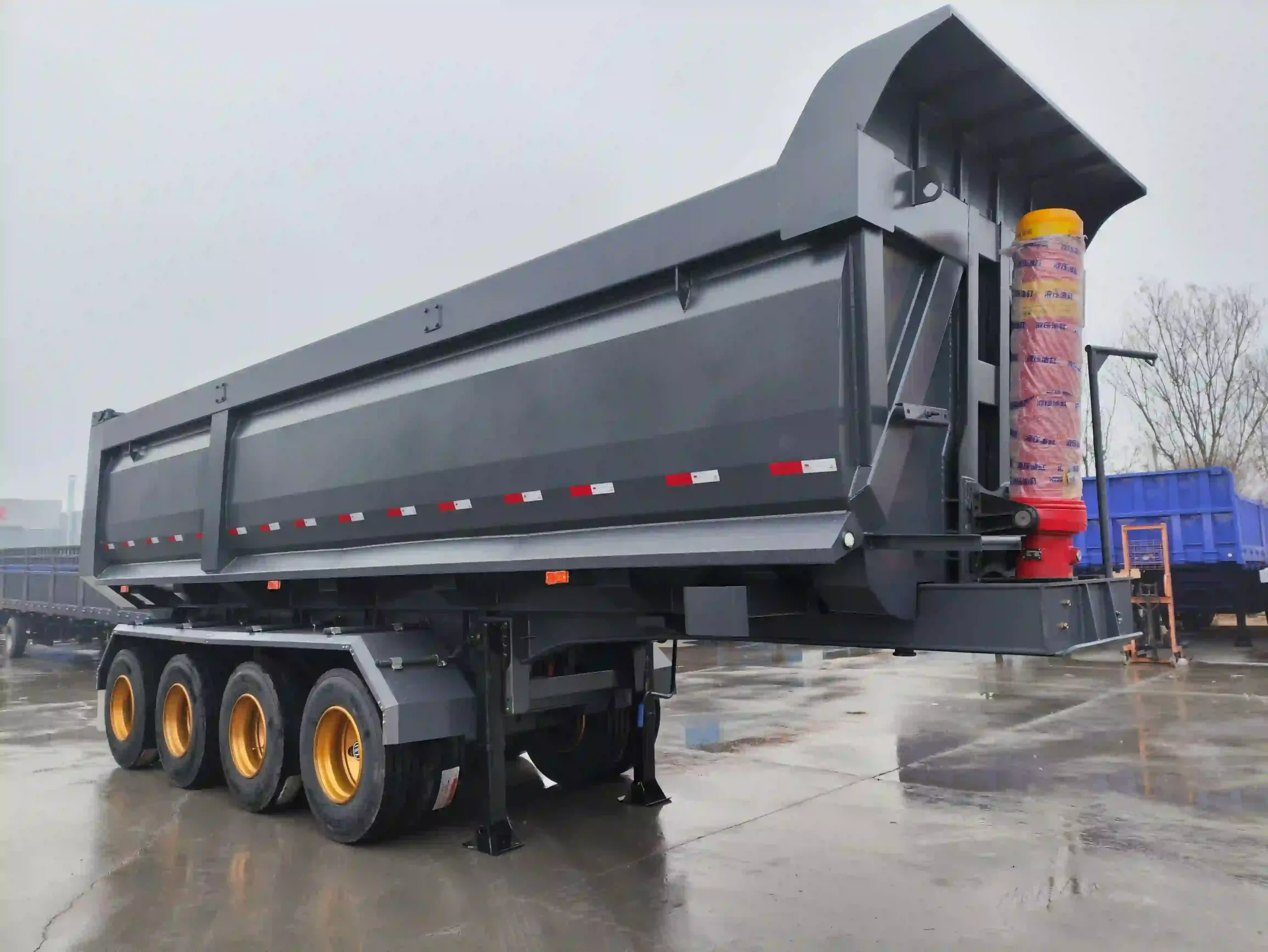

High Capacity Tipper Semi Trailer for Heavy-Duty Transport
Tipper Semi Trailer Description
Our High Capacity Tipper Semi Trailer is the ultimate solution for heavy-duty bulk material transport. Designed for demanding industries such as mining, construction, and quarrying, this trailer can handle 30 to 100 tons of payload, reducing the number of trips required to move heavy materials and increasing operational efficiency. Its rugged construction, made from Q345/T700 high-strength steel, ensures durability in harsh environments, while the HYVA hydraulic system provides reliable and powerful tipping even under full load.
Whether you're hauling iron ore, limestone, aggregates, or construction waste, this Tipper trailer made in China offers excellent unloading efficiency with a tipping angle of ≥48°, ensuring that materials discharge cleanly without residue. With customizable axle configurations (2 to 4 axles), you can tailor the trailer to meet local weight regulations and optimize performance.
High Capacity Tipper Semi Trailer Parameters
| ITEM | SPECIFICATION | ||
| Axle | 2/3/4 Axles | ||
| Dimension | 11000mm*2500mm*2800mm | ||
| Loading Capacity | 30 - 100Tons | ||
| Suspension System | Mechanical/Air Suspension(optional) | ||
| Type | Gooseneck Type/ Tandem Type | ||
| Material | Q345/T700 | ||
| Upper Plate Thickness | 16mm | ||
| Middle Plate Thickness | 10mm | ||
| Lower Plate Thickness | 18mm | ||
| Height | 500mm | ||
| Platform Thickness | 3mm | ||
| Tire | 12R22.5 (8/12 Pieces) Linglong/Triangle/DoubleCoin/Other Brand | ||
| Rim | 9.00*22.5 (8/12 Pieces) Steel/Aluminum | ||
| Leaf Spring | 90mm*13mm*10 Pieces 90mm*16mm*10 Pieces | ||
| King Pin | #50(2")/#90(3.5"), JOST/Other Brand | ||
| Landing Gear | 28 Ton Two Speed, JOST/Other Brand | ||
| Twist Lock | 12 Sets | ||
| Packing | According to the packaging requirements | ||
| Option | Front board | ||
| Painting | Powder Coating | ||
Key Advantages
- Massive Payload Capacity: Up to 100 tons, allowing for fewer trips and lowering operational costs.
- Durable Construction: Built with Q345/T700 steel for high strength and resistance to impact and abrasion.
- Efficient Unloading: ≥48° tipping angle ensures complete discharge without residue, improving cycle times.
- Proven Hydraulic System: HYVA hydraulic cylinders provide reliable lifting even under maximum load.
- Flexible Axle Configurations: Options for 2, 3, or 4 axles(13/16T per axle) to comply with regulations and road conditions.
- Safety Features: WABCO air brake system with ABS (optional) ensures a safe, short stopping distance, even on wet or downhill roads.
Applications
- Mining: Transport coal, iron ore, and copper or eon unpaved roads and rough terrain.
- Construction: Haul sand, gravel, crushed stone, and cement for large-scale infrastructure projects.
- Agriculture & Bulk Materials: Efficiently carry grain, fertilizers, and other bulk materials with minimal spillage.
- Waste Removal: Clear construction debrisand demolition waste from job sites quickly and efficiently.
Customization Options
- Cargo Box Type: U-type (better self-cleaning) or rectangular (larger volume).
- Box Size & Thickness: Tailored to your material density and specific needs.
- Axle Count: Available in 2, 3, 4, or 5 axles for optimal load distribution.
- Suspension: Mechanical(cost-effective) or Air (shock absorption for smoother transport).
- Tipping Direction: Rear tipping(standard) or side tipping (for confined spaces).
- Hydraulic Cylinder: Customized to match your box length for better lifting performance.
Why Choose Us?
- Factory Direct Pricing: Eliminate middleman costs and gain full control over product quality.
- Designed for Durability: Built for continuous use in abrasive environments, ensuring a long service life.
- One-Year Warranty + Lifetime Spare Parts Supply: We provide full support, including technical documentation and spare parts availability.
- Export-Ready: We handle all documentation, logistics, and compliance for smooth international shipping.
- Competitive Pricing: Starting from USD 10,000(base configuration, FOB), with final pricing based on customization options.
