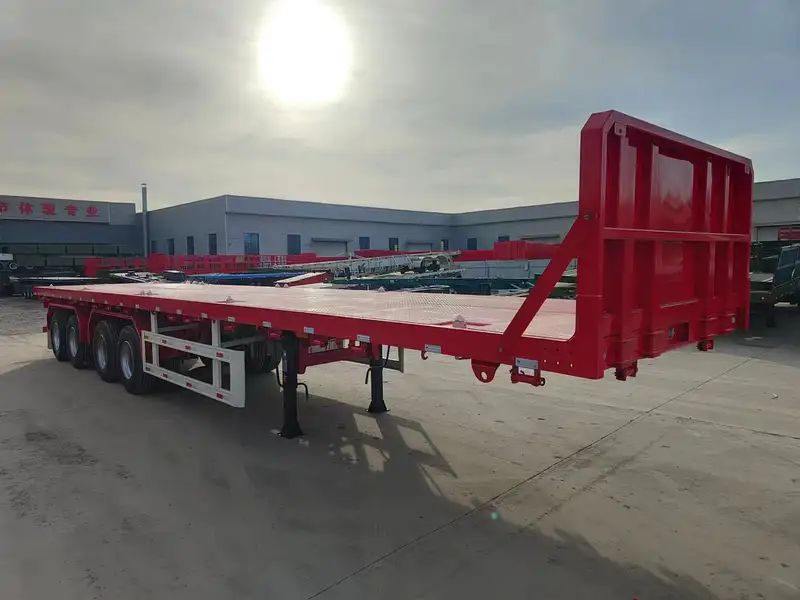

4 Axle Flatbed Semi Trailer with 2+2 Axle Configuration

General Overview

The RoadKing 4 Axle Flatbed Semi Trailer with 2+2 Axle Configuration is a heavy-haul logistics solution specifically engineered for high-tonnage transport requiring superior load distribution and extreme frame durability. Unlike conventional grouped 4-axle setups, the specialized 2+2 axle spread layout distributes gross vehicle weight more evenly across the chassis. This configuration reduces concentrated axle loads, minimizes tire scrub and uneven wear, and improves overall tractor-trailer maneuvering stability during long-distance haulage.

Built with a robot-welded, high-tensile Q355 / T700 steel main beam and reinforced crossmembers, this 4-axle flatbed trailer delivers a massive payload capacity ranging from 60 to 100 tons. Equipped with a heavy-duty front wall and versatile tie-down points, it provides maximum cargo security for oversized machinery, steel coils, timber, industrial pipes, and containerized goods.

Proven across demanding road networks in Africa, Southeast Asia, Central Asia, and the Middle East, RoadKing's 2+2 axle flatbed semi-trailer combines structural resilience with low total cost of ownership (TCO)—making it a top choice for mining operators, construction fleets, and heavy-haul logistics providers worldwide.

Key Technical Advantages

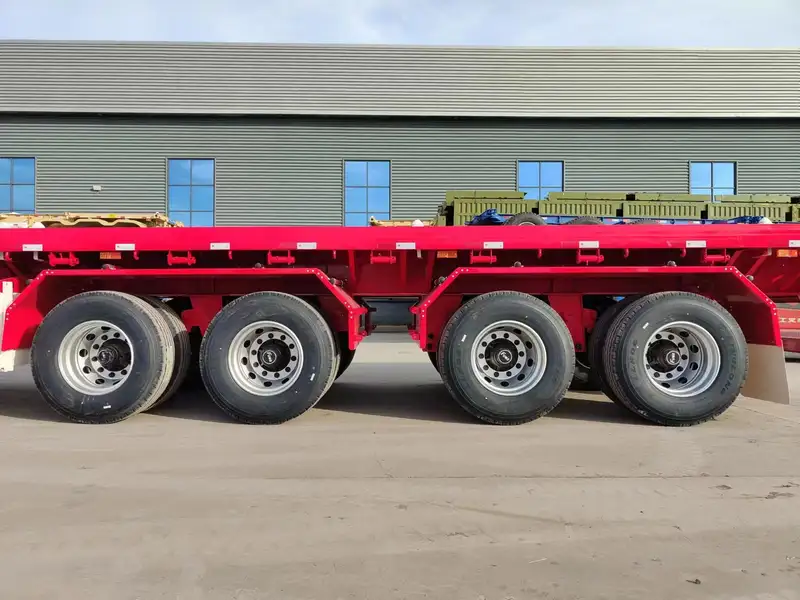

• Optimized 2+2 Axle Load Distribution

  The wide 2+2 axle spacing maximizes legal payload limits by spreading weight across a larger footprint, preventing bridge-formula overload penalties and extending tire lifespan.

• Heavy-Duty High-Tensile Steel Structure

  Constructed using premium Q355/T700 high-strength steel I-beams, delivering maximum yield strength to resist sag, twisting, or structural fatigue under concentrated heavy loads.

• Integrated Front Wall Cargo Protection

  A reinforced steel front bulkhead acts as an emergency stop barrier, preventing forward cargo shifting and shielding the tractor cab during hard braking.

• Versatile Cargo Securing & Multi-Modal Utility

  Features perimeter stake pockets, heavy-duty D-rings, and optional ISO twist locks, making it easy to transition between container logistics, timber hauling, and heavy machinery transport.

• Proven Long-Haul Reliability

  Fitted with heavy-duty mechanical leaf spring or air suspension, 28-ton two-speed landing legs, and premium 12R22.5 tubeless tires for maximum uptime in harsh operating environments.

For standard container and general freight operations, view our 3 Axle Flatbed Trailer. If you require specialized dual-tire load balance, explore the semi truck trailer types .

Technical Specifications (Standard Reference)

Primary Applications & Industry Solutions

• Construction & Mining Machinery: Secure haulage of excavators, dozers, transformers, and heavy equipment.

• Steel Coils & Industrial Metals: Carrying high-density steel coils, rebar bundles, structural beams, and heavy plates.

• Timber, Lumber & Pipes: Efficient transport of raw timber, pre-cut wood, concrete poles, and steel pipeline sections.

• Precast Concrete & Building Supplies: Transporting large architectural slabs, masonry supplies, and precast structures to jobsites.

• Container & General Freight: Versatile handling of ISO dry containers and palletized bulk freight on long-distance routes.
