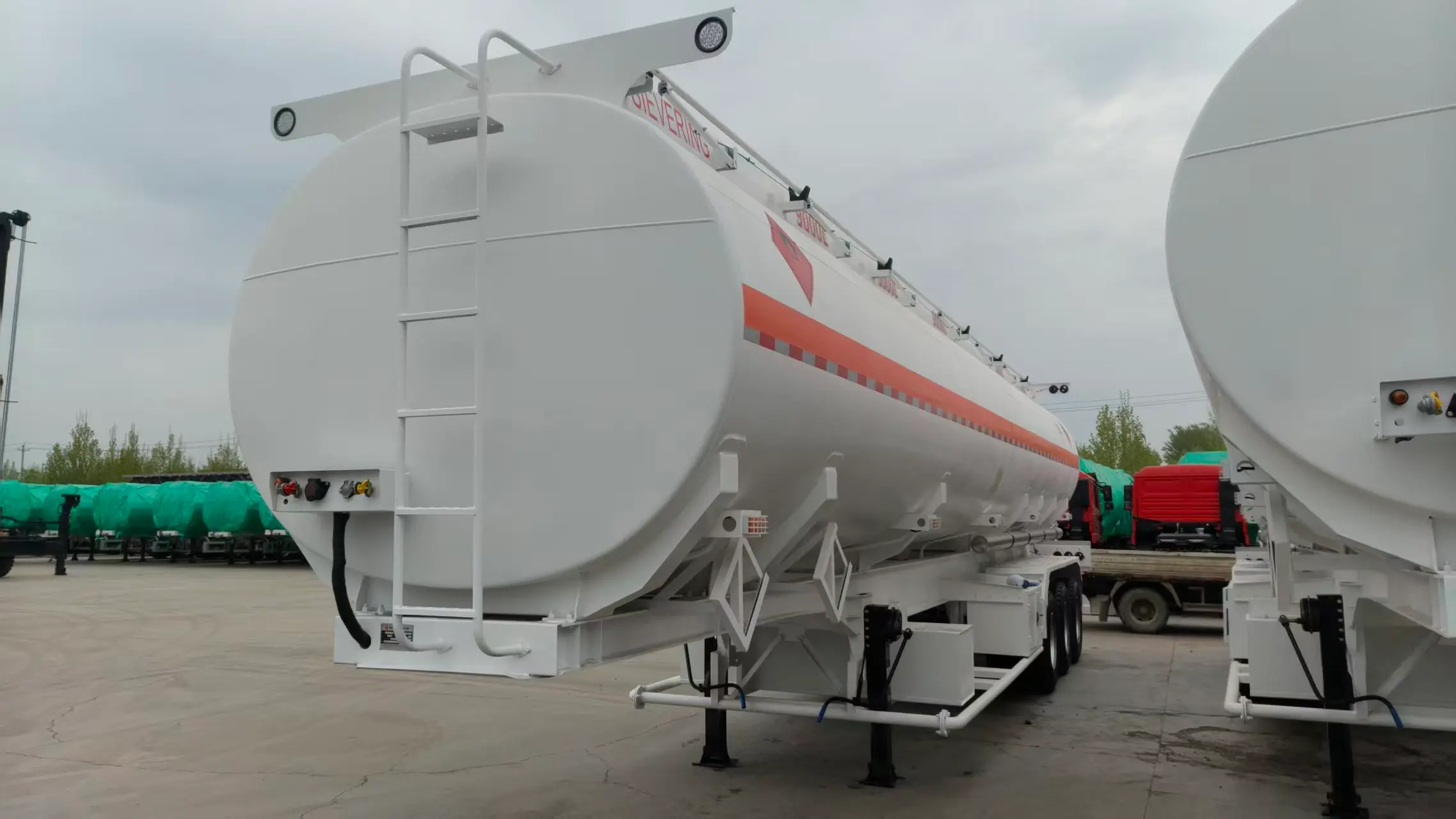

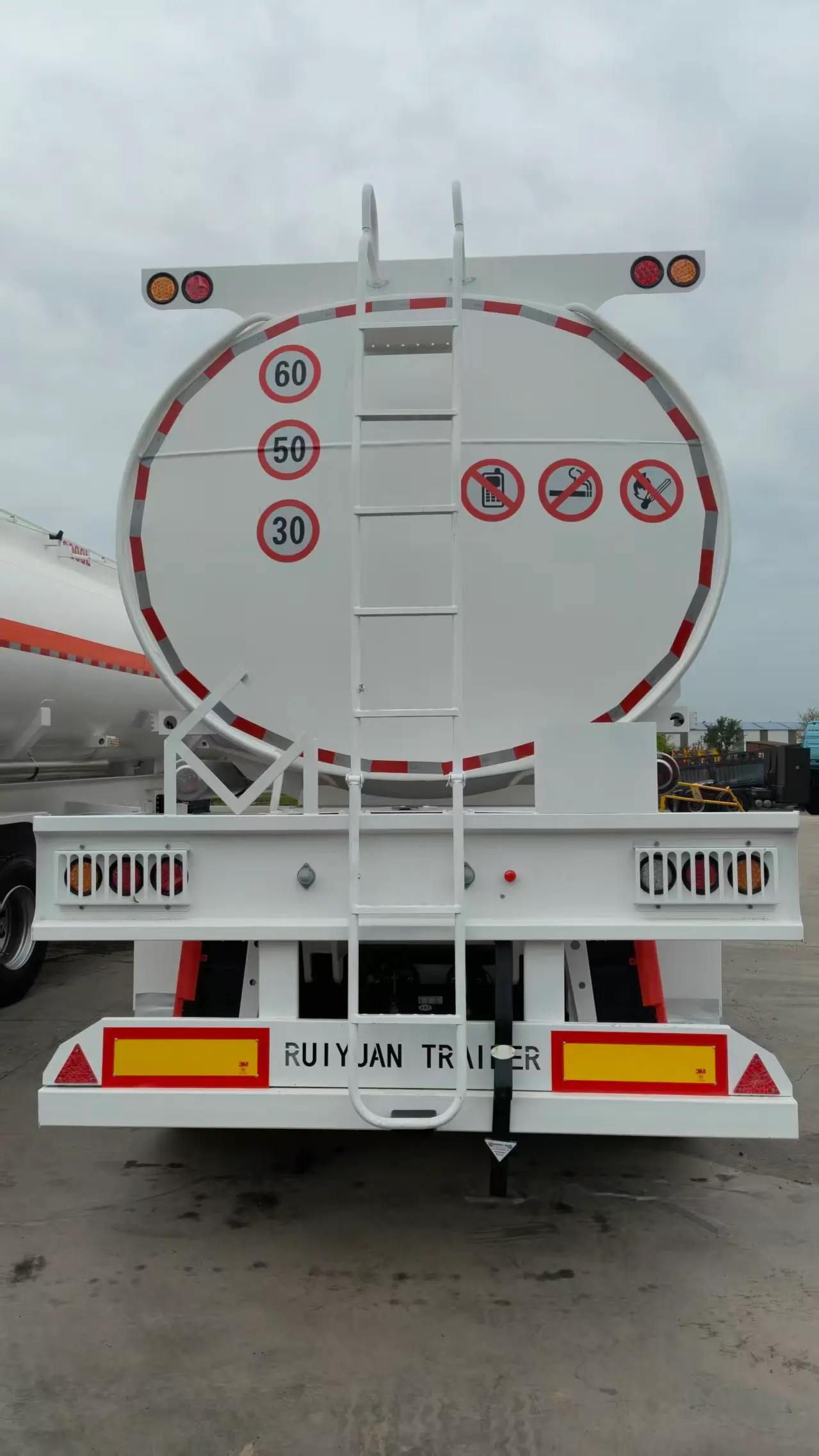

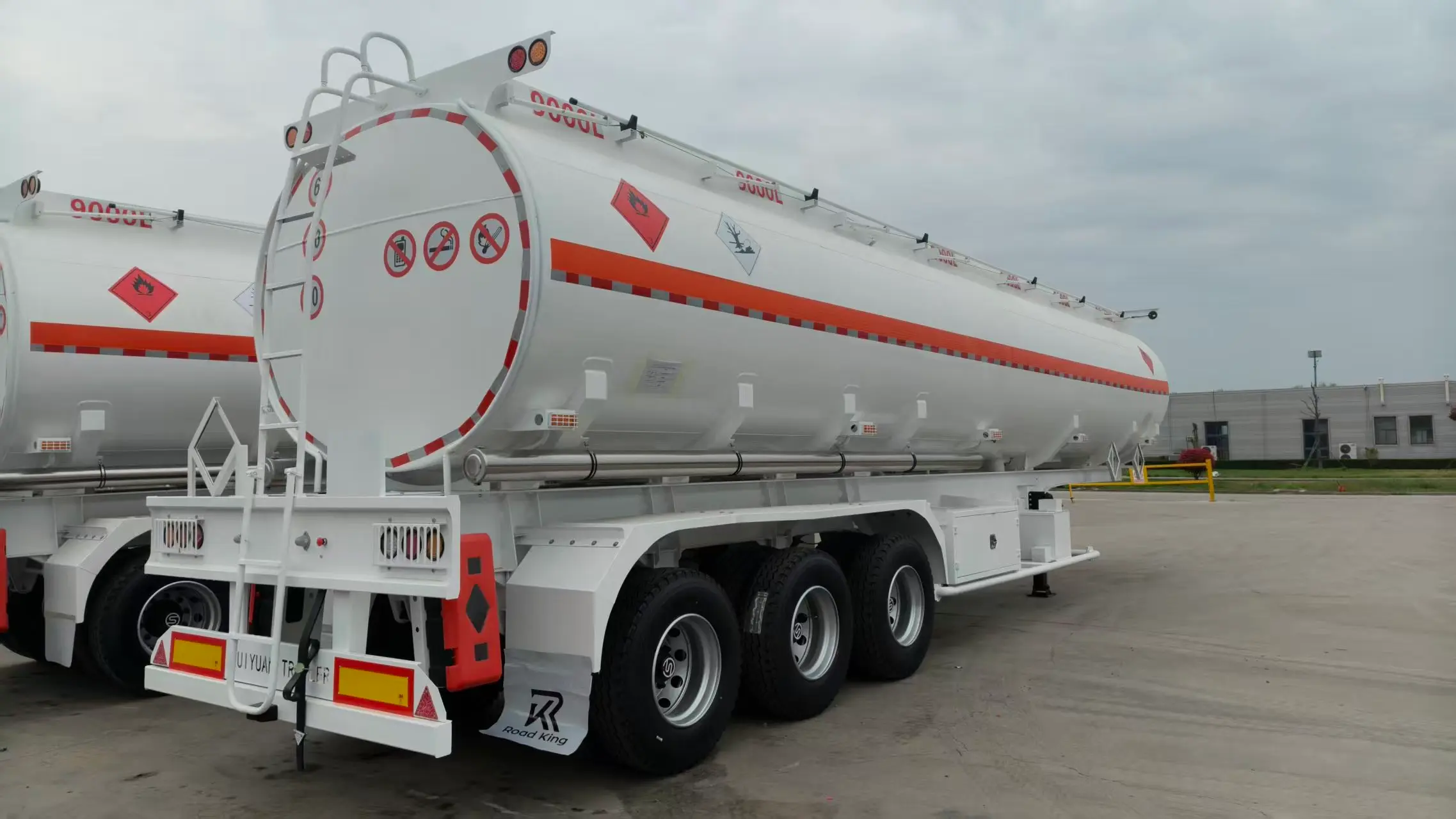

Stainless Steel Insulation Tank Semi Trailer
The Stainless Steel Chemical Tanker is engineered for transporting fuel and liquid products that require high standards of cleanliness and corrosion resistance. Manufactured using premium-grade stainless steel, it effectively prevents rust, chemical reactions, and contamination during long-term operation, ensuring the safety and quality of transported liquids such as diesel, gasoline, and edible oils.
The tank structure is precisely designed to provide excellent sealing performance, minimizing leakage risks during transportation. Its smooth inner surface reduces residue buildup, making cleaning more efficient and allowing the trailer to handle different types of liquid cargo when required.
To enhance performance under varying environmental conditions, the Chemical Liquid Tanker can be equipped with an insulation layer that helps maintain stable internal temperatures. This is particularly beneficial when transporting temperature-sensitive liquids across regions with significant climate differences.
Stainless Steel Insulation Tank Semi Trailer Parameters
| Brand | ROADKING |
| Item | Stainless Steel Fuel Tank Trailer |
| Size | 12000mm*2500mm*3800mm |
| Volume | 30-60m³ |
| Tank body | Stainless Steel |
| End plate | Steel |
| Axle | 3 axle FUWA brand (Optional) |
| Suspension | Mechanical suspension (Optional) |
| Leaf spring | 13mm×90mm×10PCs (Optional) |
| Manhole cover | 500mm manhole cover with breath valve .2 sets (Optional) |
| Tire | 12R22.5 12pcs (Optional) |
| Wheel rim | 9.0-22.5 12pcs (Optional) |
| Discharge valve | 4"disc valve |
| Discharge pipe | 4"seamless steel tube |
| Bottom valve | 1 set |
| Kingpin | 2"/3.5" bolt-in /welded king pin |
| Landing gear | FUWA brand Two-speed, manual operating ,heavy duty landing gear 28T(Optional) |
| Compartment | Single or Multi (Optional) |
| Braking system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
| EBS | WABCO EBS (Optional) |
| Light | 24V, LED lamp |
| Painting | primer + top coat, polyurethane paint |
| Accessories | One standard tool box,one spare tire carrier,one crank,one shaft head wrench,four side light,two rear light |
Structural Design & Performance
The tank and chassis are integrated through a reinforced structural design, ensuring strong resistance to vibration and road impact during long-distance transport. Advanced welding technology guarantees consistent tank strength and durability, even under continuous heavy-duty operations.
The combination of a robust frame and corrosion-resistant tank material allows the trailer to maintain long service life while reducing the risk of structural fatigue or leakage.
Oil Tanker Manufacturers Key Advantages
- Excellent corrosion and oxidation resistance for long-term use
- High-quality stainless steel material ensures safe and clean transport
- Smooth inner tank surface reduces residue and simplifies maintenance
- Optional insulation system for temperature-sensitive liquids
- Strong structural integrity for stable operation in harsh conditions
- Lower maintenance requirements and extended service life
Edible Oil Tanker Typical Applications
- Fuel and petroleum product transportation
- Edible oil and liquid food transport
- Chemical liquid logistics
- Operations in coastal, humid, or corrosive environments
- Multi-product liquid transport requiring high cleanliness standards
