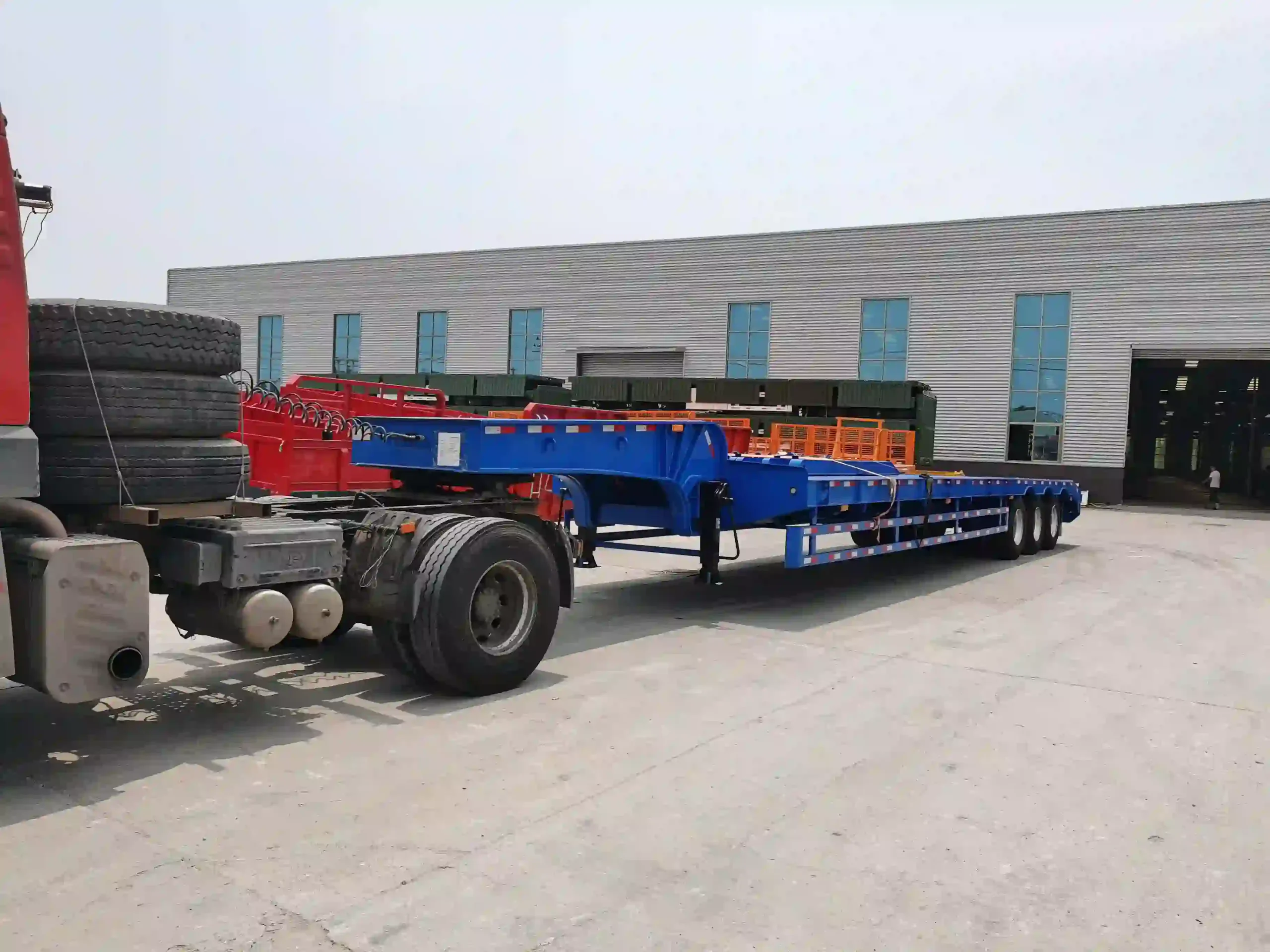

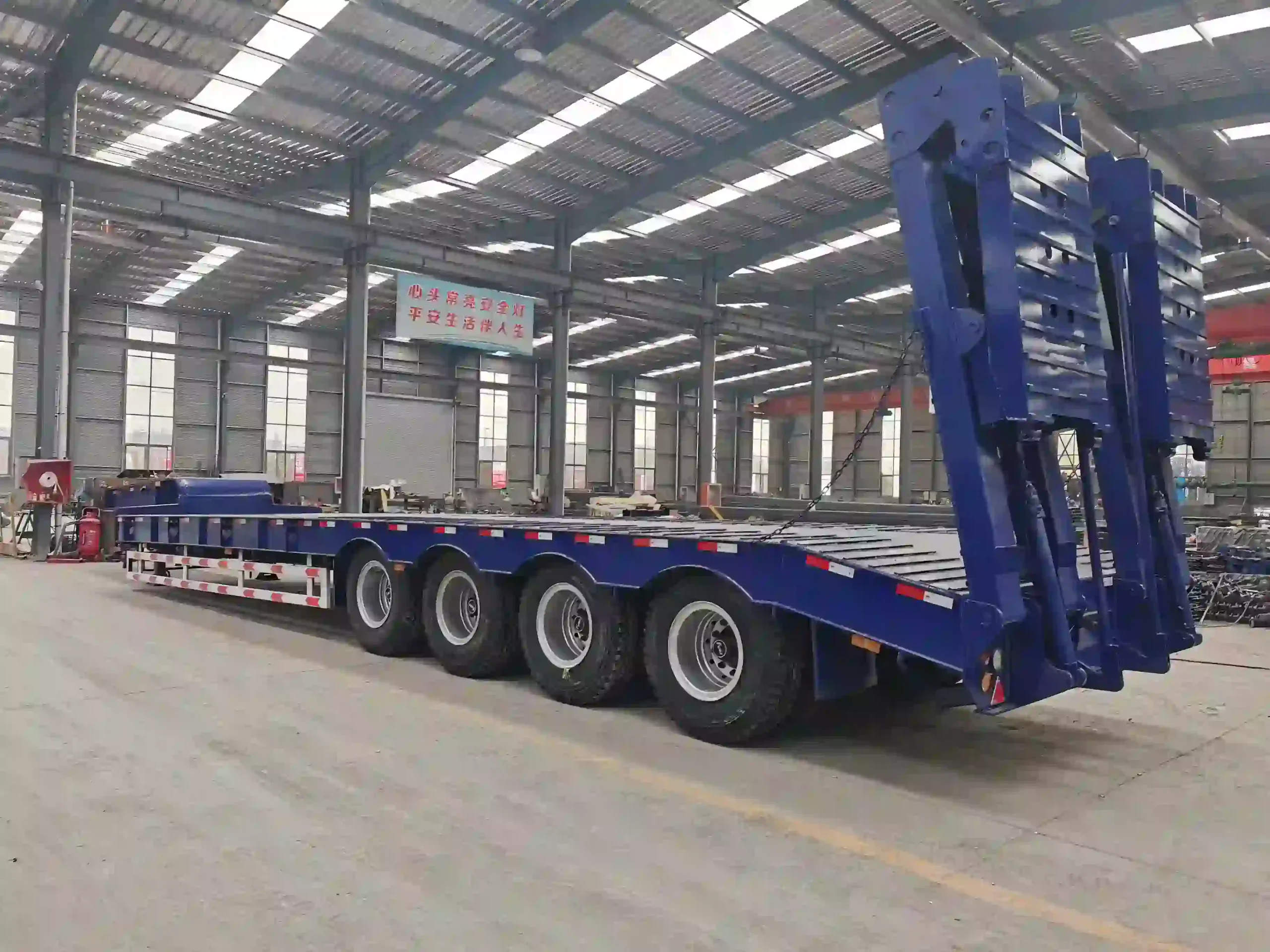

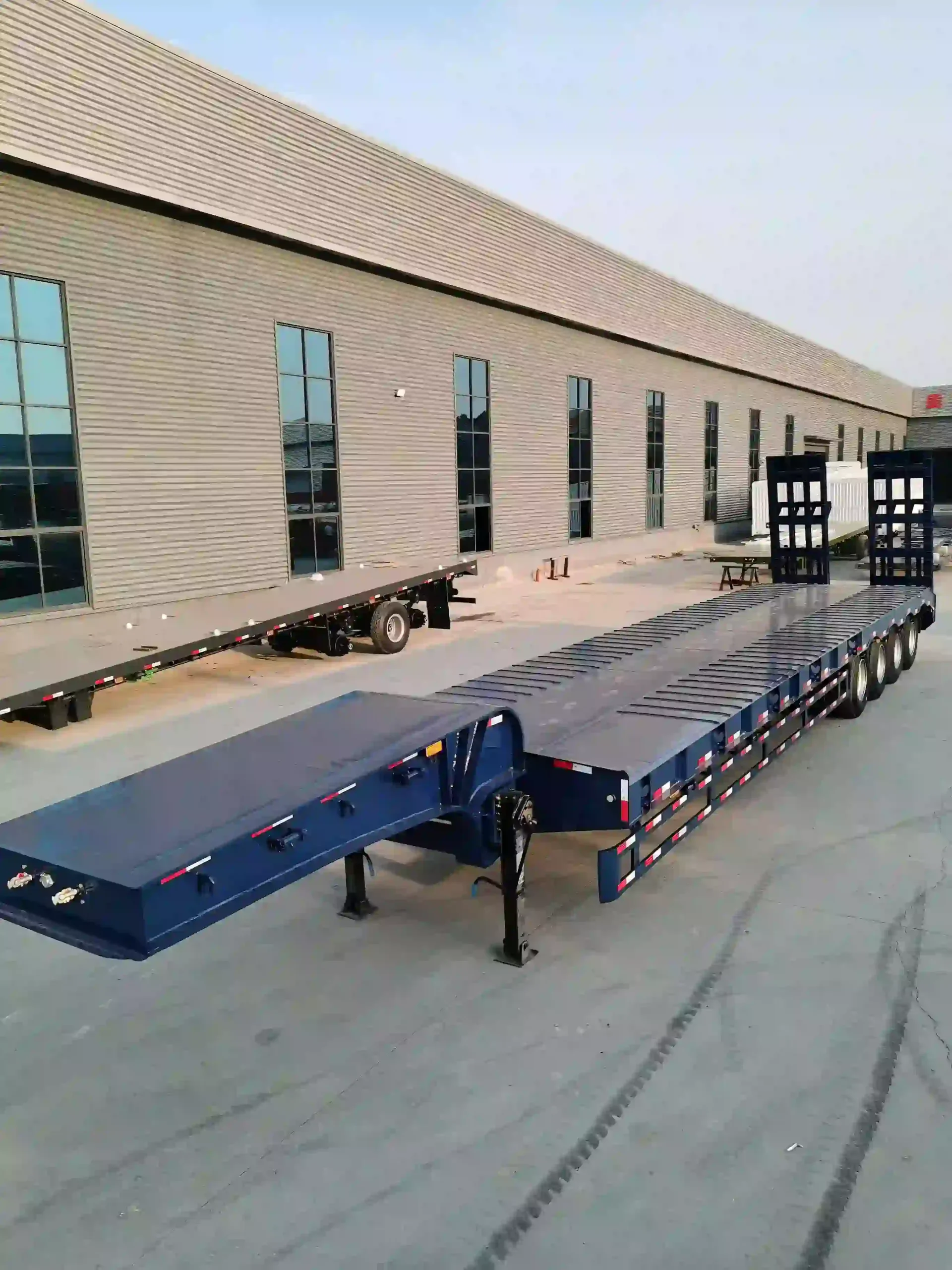

Modular Lowbed Trailer 4 Axle for Mining and Heavy-duty Industrial Transport
Modular Lowbed Trailer 4 Axle Description
The Modular Lowbed Trailer 4 Axle is designed for mining and heavy-duty industrial transport, offering exceptional stability and strength for carrying heavy machinery and oversized equipment. Built to carry weights of up to 100 tons, this trailer is perfect for transporting mining trucks, drilling rigs, and other heavy industrial equipment. The 4-axle design provides excellent weight distribution, ensuring smooth and safe transport over long distances.
This Custom extendable modular trailer features a modular frame that can be customized to fit different load sizes, providing flexibility and scalability for your business. The hydraulic suspension system guarantees a smooth ride, even on challenging and uneven terrains, ensuring the safety of both the load and the transport vehicle.
Heavy duty extendable trailer Parameters
| Brand | ROADKING |
| Rated Load Capacity | 300,000KG or Customizable |
| Max Loading Capacity | 450,000KG or Customizable |
| Platform Thickness | 50-60mm |
| Distance of Axle | 1550mm |
| Distance of Wheel | 740/1820mm |
| Axle | 15T hydraulic steering axle |
| Tire | 7.50R15 tire, triangle brand/Other |
| Platform Height | Adjustable, with hydraulic suspension system |
| Hydraulic Gooseneck | Includes 14kw power unit, hydraulic station, generator |
| Steering Bracket | According to number of Axle |
| Power Pack | 14kw including generator |
| Control Box | 1 Unit |
| Combination + Remote Control | 4 Units |
| Drop Deck | 300 Tons |
| Turn Table | 150 Tons |
| Small Turning Radius | 48° steering angle with hydraulic gooseneck |
| Steering Type | Both automatically and manually steering |
| Braking System | Dual-pipes braking system, pneumatic type, parking brake |
| Electrical System | Voltage: 24V, Receptacle: 7-way (7 wire harness) |
| Color | Customizable |
Modular trailer for long loads Applications
- Mining Equipment Hauling: Perfect for transporting mining trucks, drills, and excavation machinery.
- Industrial Equipment Transport: Suited for heavy-duty machinery and equipment used in manufacturing and heavy industries.
- Construction Machinery: Ideal for hauling large construction equipment to and from job sites.
Modular transport trailer with heavy load capacity Advantages
- High Payload Capacity: Designed to carry up to 100 tons of heavy equipment and cargo.
- Modular Frame: Customizable to accommodate different load sizes and configurations.
- Superior Stability: 4-axle design offers excellent weight distribution and safe handling.
- Hydraulic Suspension: Ensures smooth transport, even on uneven or rough terrain.
Specifications
- Payload Capacity: 60 - 100 Tons
- Axles: 4 Axles *13/16 Ton, FUWA/BPW/Other
- Suspension Options: Mechanical, Air, or Hydraulic
- Tires: 12R22.5 (16 pieces)
- Tire Style: Covered or Uncovered
- Braking System: Air brake system with optional ABS
- Landing Gear: 28T two-speed, JOST
- Ramp: Hydraulic or Mechanical spring type
- Coating: Powder Coating
Why Choose Us
- Over 20 Years of Expertise: Leading the industry in trailer design and manufacturing.
- Customization Options: Tailor-made solutions based on your specific transport requirements.
- Superior Durability: Built with Q345/T700 steeland finished with powder coating for maximum longevity.
- Global After-Sales Support: Ongoing technical support and spare parts availability to ensure continuous operation.
- Competitive Pricing: Factory-direct prices with exceptional value for your investment.
