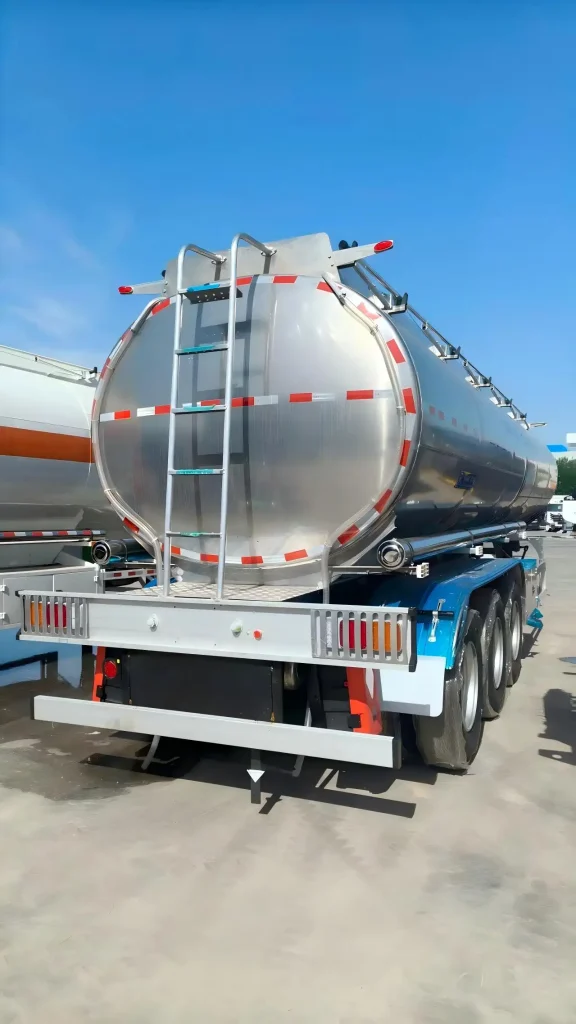

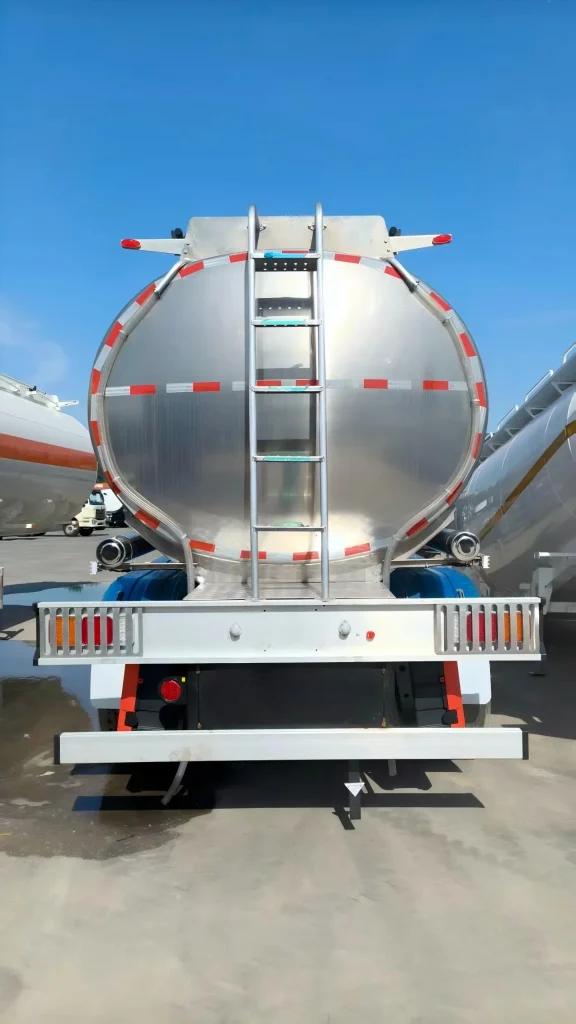

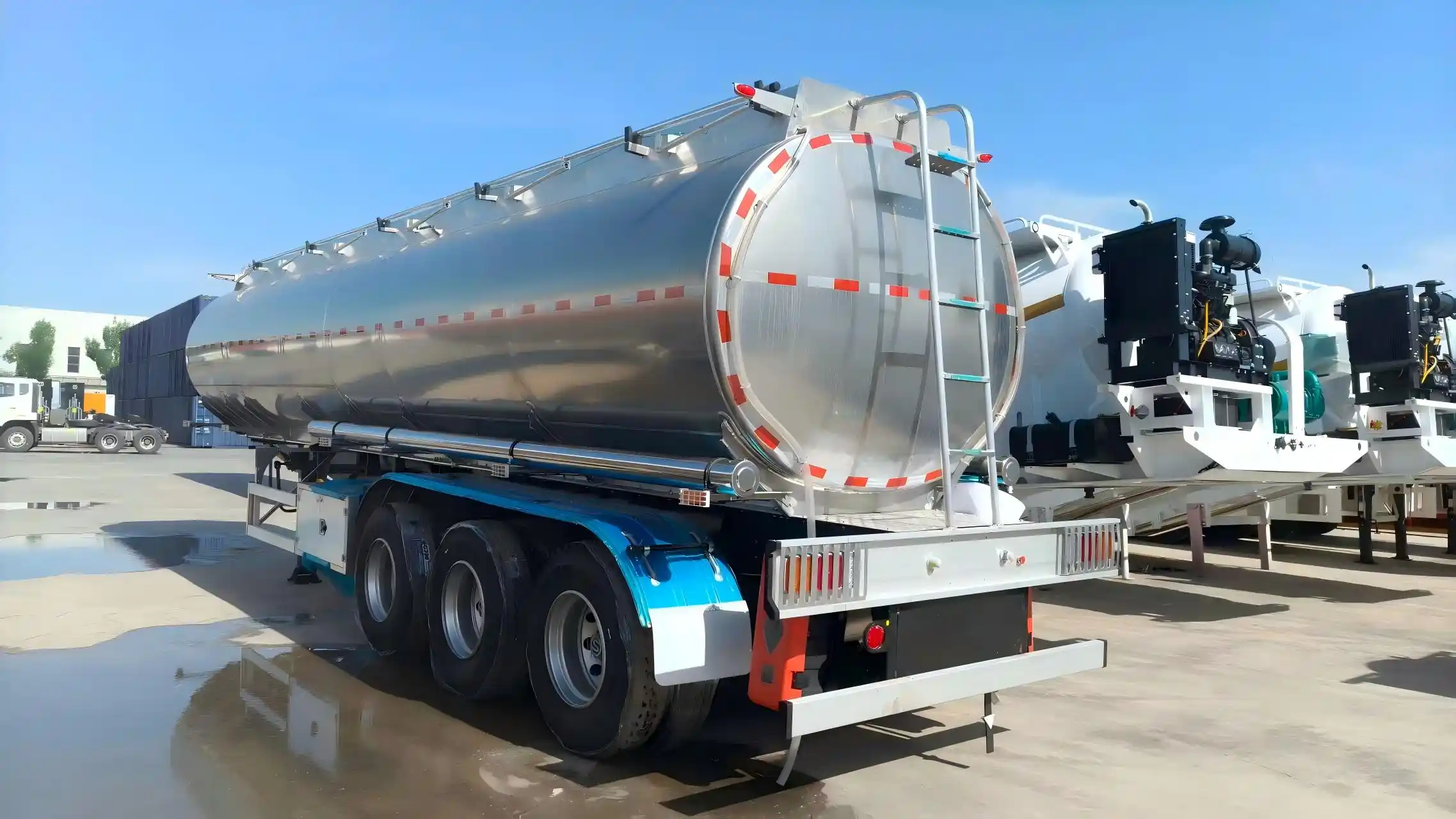

304 Stainless Steel Liquid Tank Semi Trailer for Food and Chemical Transportation
304 Stainless Steel Liquid Tank Semi Trailer Overview
The 304 Stainless Steel Liquid Tank Semi Trailer is designed for customers who require a reliable and corrosion-resistant solution for transporting liquid cargo. Different from conventional carbon steel fuel tanker trailers, this stainless steel tanker semi trailer focuses on applications where cargo cleanliness, material compatibility and long service life are important.
With a tank body manufactured from 304 stainless steel, this Fuel Tanker Trailer provides excellent corrosion resistance and a smooth internal surface, making it suitable for transporting food-grade liquids, edible oil, chemical liquids and other industrial liquid materials.
In modern logistics operations, liquid transportation requires more than only large capacity. The tank material, structural strength, unloading system and maintenance requirements all directly affect transportation efficiency. A suitable tanker trailer should protect the cargo while maintaining stable performance during long-distance transportation.
RoadKing 304 Stainless Steel Liquid Tank Semi Trailer combines a stainless steel tank structure with a reinforced semi trailer chassis design. The result is a transportation solution that provides durability, operational reliability and flexibility for customers in Africa, Southeast Asia, South America and other international markets.
Specifications
| Item | Specification |
| Product Type | 304 Stainless Steel Liquid Tank Semi Trailer |
| Capacity | 45,000L |
| Tank Material | SUS304 Stainless Steel |
| Tank Body Thickness | 3.5mm SS304 |
| Tank Head Thickness | 4.0mm SS304 |
| Axle Configuration | 3 Axles / 4 Axles Optional |
| Tire Size | 12R22.5 |
| Tire Quantity | 12 Units |
| Suspension | Mechanical Suspension / Air Suspension |
| Main Beam | High Strength Steel |
| Valve | Stainless Steel Bottom Discharge Valve |
| Manhole | Stainless Steel Manhole Cover |
| Application | Food Liquid, Chemical Liquid Transportation |
| Surface Treatment | Stainless Steel Polishing |
| Brake System | Dual Line Pneumatic Brake System |
| Electrical System | 24V Lighting System |
| Customization | Available |
304 Stainless Steel Tank Body Design
The main advantage of this liquid tank semi trailer is the use of 304 stainless steel for the tank body.
Compared with traditional carbon steel tanks, SS304 stainless steel provides better resistance against corrosion and oxidation. This makes it more suitable for liquid products that require higher material standards.
The stainless steel tank structure provides several benefits:
Excellent Corrosion Resistance
During transportation, the tank interior may be exposed to different liquid materials for extended periods. SS304 stainless steel helps reduce corrosion problems and improves the service life of the tanker.
This is especially important for customers transporting chemical liquids or products that may affect ordinary steel materials.
Smooth Inner Surface
The smooth stainless steel surface helps reduce liquid residue inside the tank.
This provides advantages including:
- Easier cleaning after unloading
- Reduced material accumulation
- Better maintenance efficiency
- Improved transportation hygiene
For food-related transportation, maintaining a clean cargo environment is a key requirement.
Durable Long-Term Performance
Stainless steel construction provides reliable performance under repeated transportation operations.
For logistics companies operating multiple trips every week, a durable tank structure can help reduce maintenance frequency and improve equipment utilization.
Designed for Food and Chemical Liquid Transportation
Unlike traditional fuel tanker trailers mainly used for diesel and gasoline transportation, this 304 Stainless Steel Liquid Tank Semi Trailer is designed for a wider range of liquid cargo applications.
Food Liquid Transportation
The SS304 tank body makes this trailer suitable for food-related liquid transportation.
Typical applications include:
- Edible oil transportation
- Cooking oil logistics
- Food ingredient transportation
- Beverage-related liquid transportation
Food transportation requires strict attention to cleanliness and material safety. Stainless steel provides a practical solution because of its corrosion resistance and easy-cleaning characteristics.
The smooth tank structure helps transportation companies maintain better hygiene standards during repeated loading and unloading operations.
Chemical Liquid Transportation
The stainless steel tank structure also provides advantages for industrial liquid transportation.
Possible applications include:
- Chemical raw materials
- Industrial processing liquids
- Non-hazardous chemical liquids
- Special liquid cargo
Different liquid materials may have different requirements. RoadKing can customize the tank configuration according to customer cargo characteristics, including tank structure, compartment design and discharge system.
Reinforced Semi Trailer Chassis Structure
A high-quality tank body requires a strong and reliable chassis system.
The trailer frame is manufactured with high-strength steel materials to support the weight of the tank and liquid cargo during transportation.
The chassis structure includes:
- Reinforced main beams
- Strong cross members
- Heavy-duty landing gear
- Reliable suspension components
During operation, the trailer experiences different forces caused by:
- Cargo loading
- Road vibration
- Braking
- Turning
- Long-distance transportation
A reinforced chassis design improves overall stability and helps maintain reliable performance in different road environments.
Stable Transportation Performance
Liquid transportation has unique requirements compared with ordinary cargo transportation.
Because liquid cargo can move inside the tank during driving, trailer stability is very important.
The tanker structure is designed to provide:
Better Driving Stability
A properly designed tank body and chassis combination helps improve vehicle balance during transportation.
Reliable Weight Distribution
Different axle configurations can be selected according to loading requirements and local regulations.
Improved Operational Safety
A stable trailer structure helps reduce unnecessary movement and improves transportation confidence.
This is particularly important for customers operating in regions with long transportation distances and variable road conditions.
Flexible Axle and Configuration Options
RoadKing provides different configurations according to customer requirements.
Available options include:
3 Axle Tanker Trailer
Suitable for customers requiring a balance between:
- Payload capability
- Operating flexibility
- Maintenance convenience
4 Axle Tanker Trailer
Suitable for customers requiring higher loading capacity and different transportation regulations.
The axle configuration can be adjusted according to:
- Local road standards
- Cargo weight
- Transportation distance
Efficient Discharge System
A reliable unloading system is an important part of tanker trailer operation.
This model can be equipped with stainless steel discharge valves designed for liquid cargo transportation.
Advantages include:
- Reliable sealing performance
- Easy operation
- Corrosion resistance
- Long service life
Different valve systems can be customized according to cargo requirements.
Easy Maintenance and Cleaning
For liquid transportation companies, maintenance efficiency directly affects operating costs.
The 304 stainless steel tank structure helps simplify maintenance through:
- Corrosion resistance
- Smooth surface
- Easy cleaning process
- Reduced rust-related problems
Compared with ordinary carbon steel tanker trailers, stainless steel tanks usually provide better durability in environments where moisture, chemicals or frequent washing are involved.
Applications in Global Markets
The 304 Stainless Steel Liquid Tank Semi Trailer is suitable for various international transportation markets.
Africa
Many African countries require durable transportation equipment for food supply chains, industrial development and chemical logistics.
The stainless steel tanker provides reliable performance for:
- Long-distance transportation
- Regional distribution
- Industrial liquid delivery
Southeast Asia
The food processing and chemical industries in Southeast Asia create demand for stainless steel liquid transportation equipment.
South America
Agricultural and industrial markets require efficient transportation solutions for different liquid products.
RoadKing provides customized tanker trailer solutions according to regional requirements.
46.8 cbm 3 axle stainless steel chemical tanker Advantages
304 Stainless Steel Tank Construction
Provides corrosion resistance, durability and better cargo compatibility.
Suitable for Multiple Liquid Applications
Designed for food liquids, edible oil, chemical liquids and industrial materials.
Strong Trailer Frame
High-strength chassis structure supports long-term commercial operation.
Flexible Customization
Capacity, axle configuration, compartments and accessories can be customized.
Easy Maintenance
Stainless steel construction helps reduce maintenance requirements and improve service life.
Why Choose RoadKing 304 Stainless Steel Liquid Tank Semi Trailer
RoadKing focuses on manufacturing reliable semi trailer solutions for international transportation markets.
The 304 Stainless Steel Liquid Tank Semi Trailer combines stainless steel material advantages with practical transportation design. It provides customers with a professional solution for industries requiring cleaner, safer and more durable liquid transportation equipment.
From food liquid transportation to chemical logistics applications, RoadKing can provide customized trailer configurations according to cargo requirements, operating environment and market conditions.
With professional manufacturing experience and flexible production capability, RoadKing China fuel tanker semi trailer manufacturer continues to support global customers with reliable tanker trailer solutions designed for long-term transportation performance.
