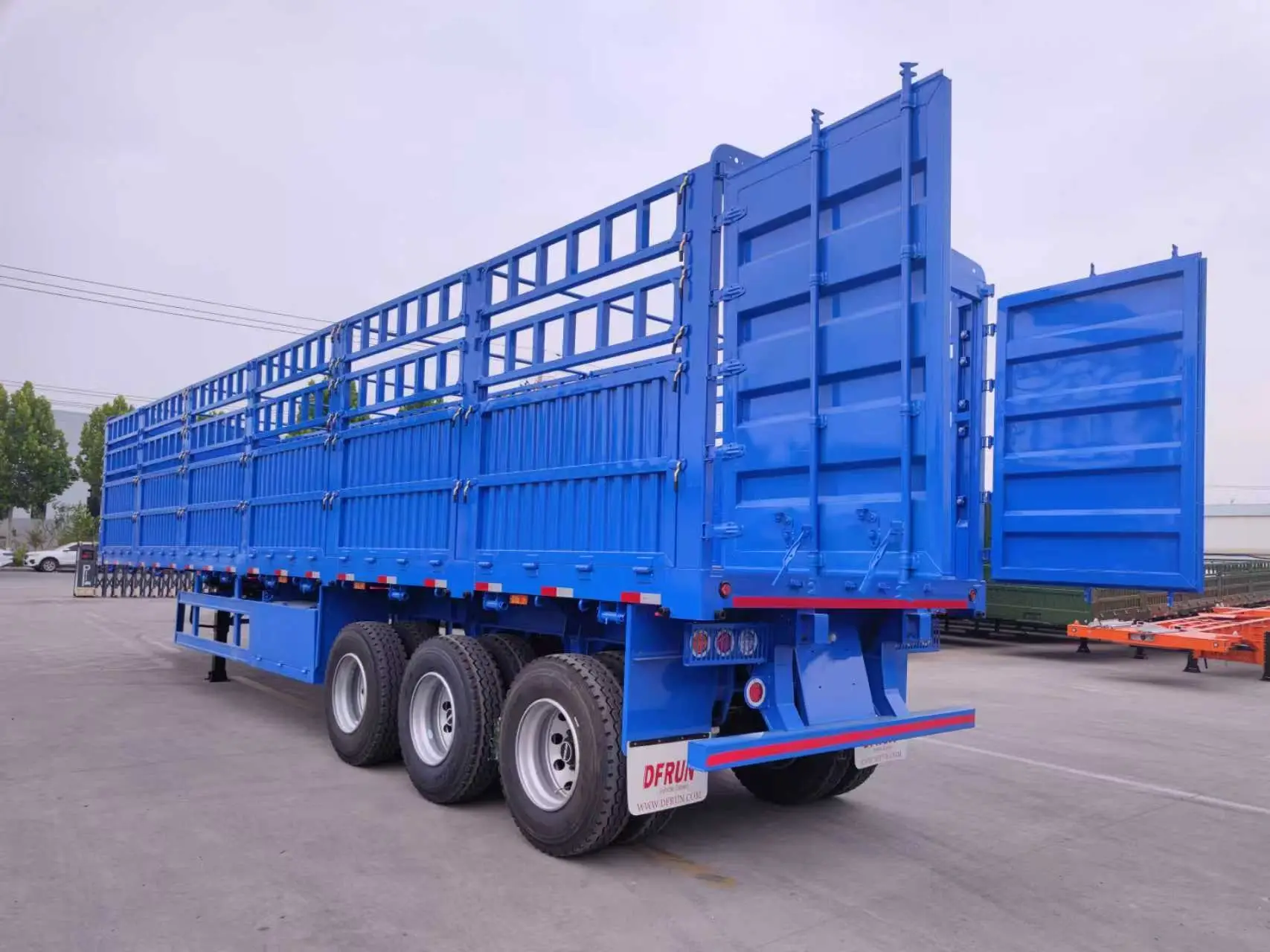

100T Reinforced 4 Axles Fence Cargo Trailer for Heavy Freight
The 4 Axles Fence Cargo Trailer is designed for the most demanding freight transport tasks, with a load capacity ranging from 40 to 100 tons. It’s built for industries that require the transportation of large-scale industrial goods, construction machinery, and oversized materials. Whether for long-distance transport or for carrying exceptionally heavy loads, this trailer excels in ensuring stable and secure transit even in the harshest conditions.
With its reinforced frame and heavy-duty 4-axle configuration, it offers superior stability and durability. The Livestock fence trailer’s open fence design makes it easy to load and unload oversized and irregularly shaped cargo, including bulk materials and equipment.
100T Reinforced 4 Axles Fence Cargo Trailer Parameters
| Brand | ROADKING |
| Item | 4 Axles Fence Cargo Semi Trailer |
| Application | Coal / Livestock / Vegetable / General Cargo |
| Dimensions (L×W×H) | 13000×2550×1800mm |
| Loading Capacity | 40–100T |
| OEM/ODM | Available |
| SKD/CKD | Available |
| Gooseneck Type | Available |
| Main Beam Material | Q345 / T700 |
| Upper Plate Thickness | 18mm |
| Middle Plate Thickness | 12mm |
| Lower Plate Thickness | 20mm |
| Main Beam Height | 500mm |
| Fence Height | 1800mm (Customizable) |
| Axle | 4 Axles × 13/16 Ton, VEHICLE MASTER / FUWA / BPW / Other |
| Tire | 12R22.5 (16 pcs), Linglong / Triangle / Double Coin / Bridgestone / Other |
| Rim | 9.00×22.5 (16 pcs), Steel / Aluminum |
| Leaf Spring | 90×13mm×10 pcs / 90×16mm×10 pcs |
| King Pin | #50 (2") / #90 (3.5"), JOST / Other |

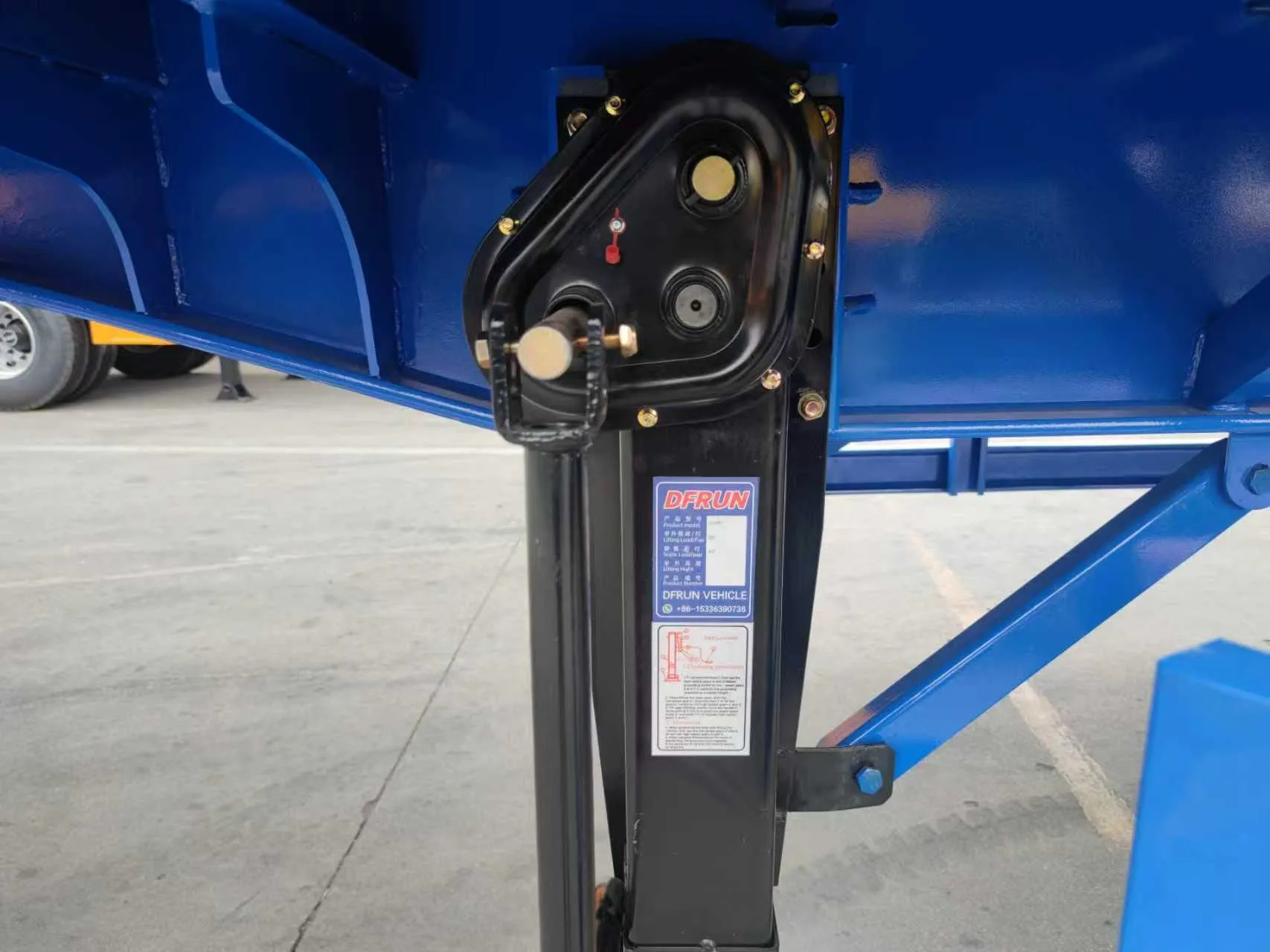

| Landing Gear | 28 Tons Two Speed, JOST / Other |
| Painting | Electrophoresis Painting |
Key Advantages
Maximum Load Capacity
With reinforced structural components and a 4-axle design, this trailer offers unmatched load capacity, handling up to 100 tons of heavy freight with ease.
Versatile Cargo Handling
The open fence design makes loading and unloading bulky and irregular cargo quick and efficient, ideal for large-scale industrial materials or project cargo.
Superior Durability
Manufactured by China livestock fence trailer manufacturer from premium high-strength steel and treated for corrosion resistance, this trailer is built to last in the toughest conditions.
Cost-Effective for Heavy Freight
Designed to provide a more affordable alternative to box trailers, this model reduces operational costs while offering greater reliability and performance.
Applications
- Heavy freight and industrial material transport
- Large-scale construction projects
- Mining equipment and machinery hauling
- Logistics for bulk and oversized cargo
Optional Configurations
- Customizable fence height of Buy cattle fence trailer from China
- Choice of axle configurations (3/4 axles)
- Mechanical or air suspension options
- Various tire and rim choices
- LHD / RHD compatibility
- Custom paint and logo options
